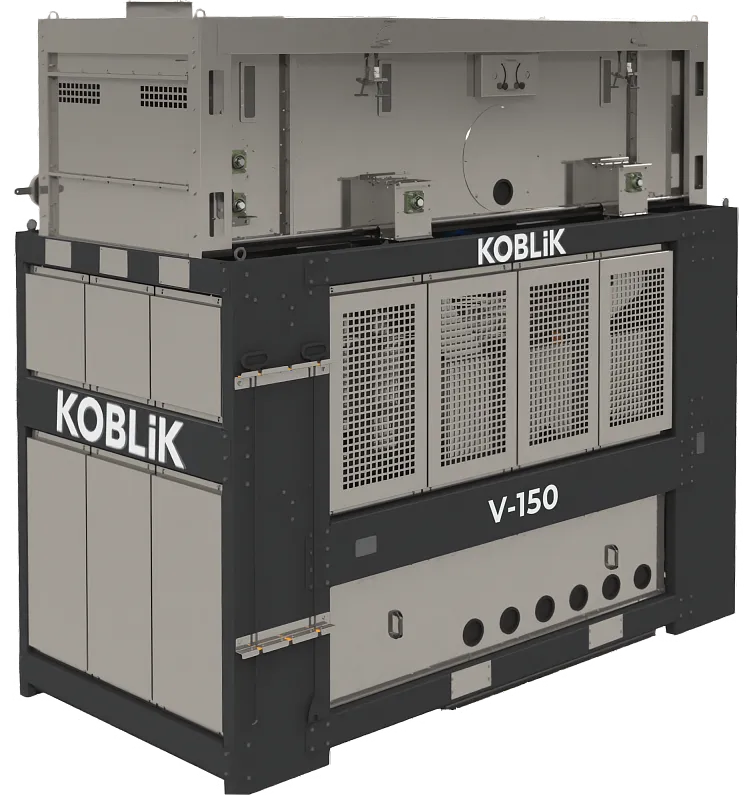

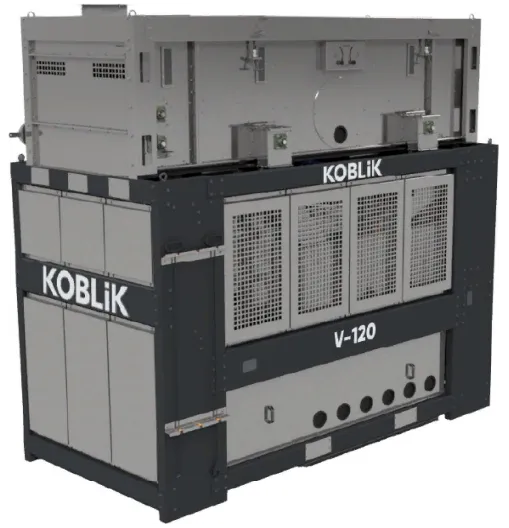

VARIO grain pre-cleaning and commercial cleaning machines
A machine for the preliminary and commercial cleaning of grain
from 12 to 80 t/hModel
Advantages
-
Quick and precise air-flow speed adjustment
At the outlet and inlet, via separate adjustment of the pneumatic separator
-
Dual effective cleaning system
Balls and a scraper conveyor, which promotes even distribution of the material across the working width of the sieve frames
-
Quick replacement of worn balls
Thanks to removable sieve frames
-
Extended service life
Thanks to low vibration provided by two balanced sieve frames
-
High throughput
Even when handling wet and heavily contaminated material
Description
- Description
- Technical data
- Gallery

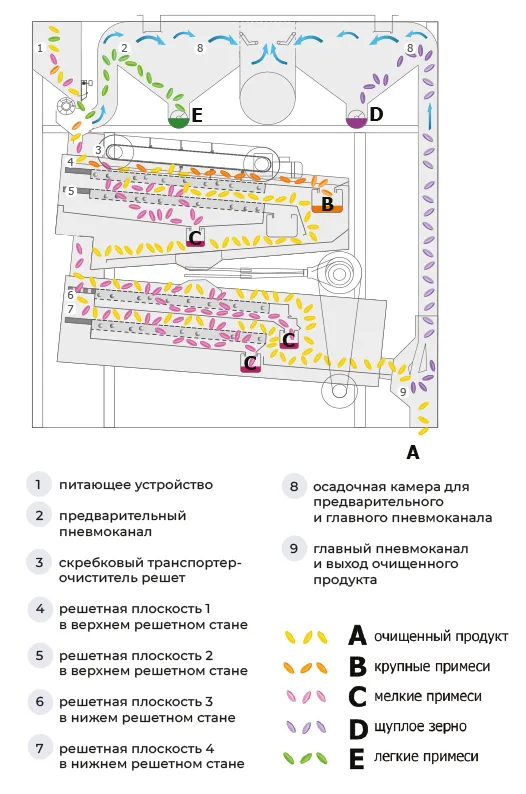

VARIO — a machine for the preliminary and commercial cleaning of grain. It removes light, large and small weed impurities through the combined action of the sieve section and the aspiration system.
Areas of application
The machine performs:
Crops handled
Suitable for:
Using the VARIO machine makes it possible to:
Recommended usage scenarios:
Areas of application
The machine performs:
- preliminary cleaning — removal of large impurities immediately after harvesting;
- primary (commercial) cleaning — bringing the grain to basic commercial standards;
- secondary (seed) cleaning — fine cleaning of seed material to the highest quality standards.
Crops handled
Suitable for:
- cereal crops;
- legumes;
- groats crops;
- industrial crops;
- oilseed crops;
- grass seeds.
- Capacity: from 12 t/h (depending on the model and crop type);
- Types of impurities removed: light (by air flow), large and small (by sieves);
- Operating principle: combined cleaning — sieve section + aspiration system;
- Design features: modular design, adjustable cleaning parameters.
- Multi-stage cleaning — sequential removal of different types of impurities in a single pass.
- High separation precision — effective separation of crop seeds from weeds and debris.
- Flexible setup — adjustment of parameters for specific crops and contamination levels.
- Performance — processing of significant volumes of material in a short time.
- Reliability — robust design and wear-resistant components for long service.
- Energy efficiency — optimised energy consumption with high effectiveness.
- Ease of maintenance — easy access to assemblies for cleaning and technical care.
- Versatility — works with a wide range of agricultural crops.
Using the VARIO machine makes it possible to:
- reduce the impurity content to regulatory levels;
- improve the grade and germination of seed material;
- improve storage conditions by removing dust and light fractions;
- prepare grain for further processing (drying, grading, storage);
- increase the market value of the product thanks to purity and uniformity;
- meet the requirements of GOST and international quality standards.
Recommended usage scenarios:
- intake and primary processing of the harvest at elevators;
- preparation of seed material at seed plants;
- grain cleaning at flour-milling and feed-mill enterprises;
- processing of oilseed crops before oil extraction;
- bringing grain to base standards before sale;
- integration into seed processing lines as a fine-cleaning machine.
