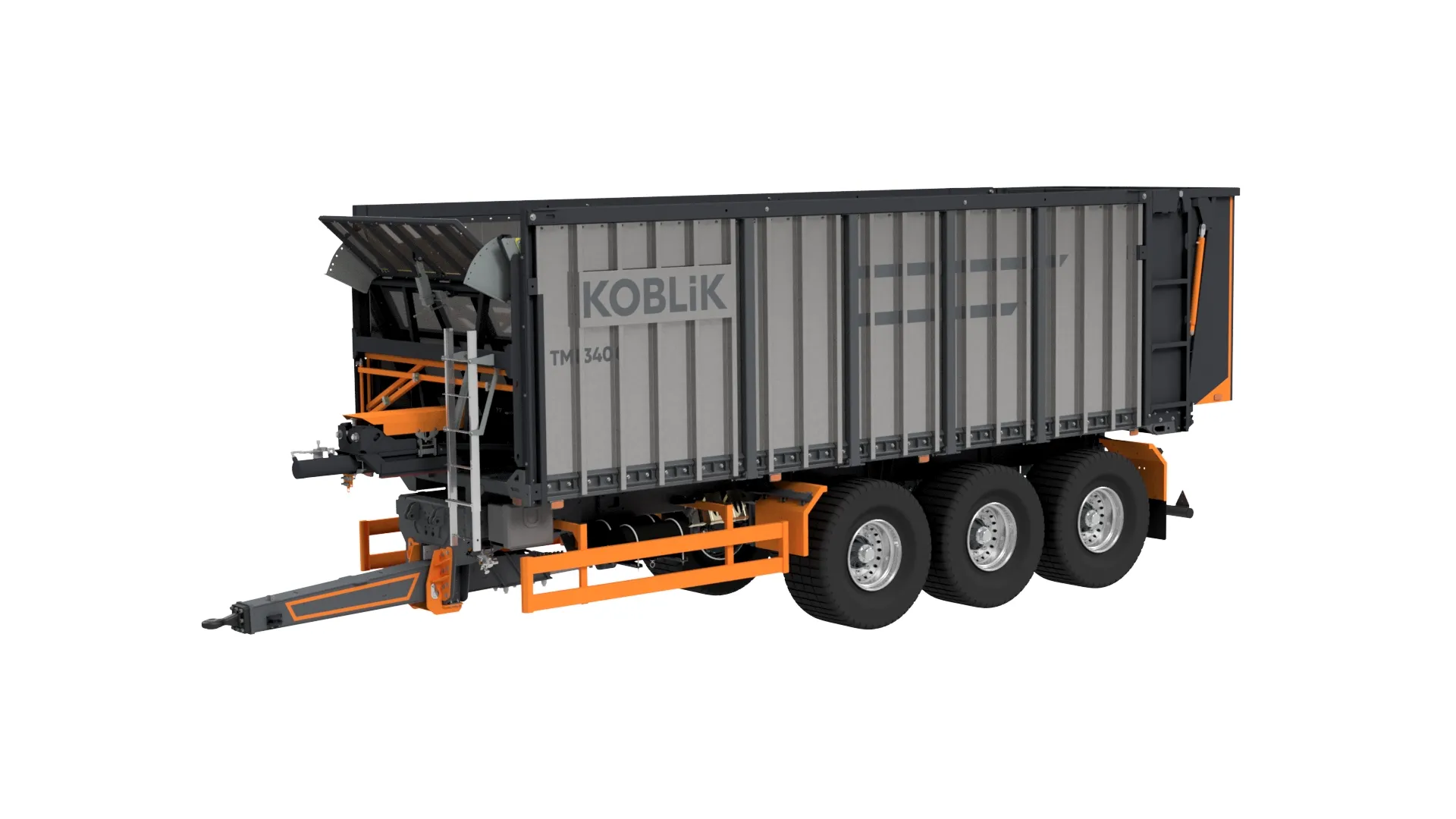

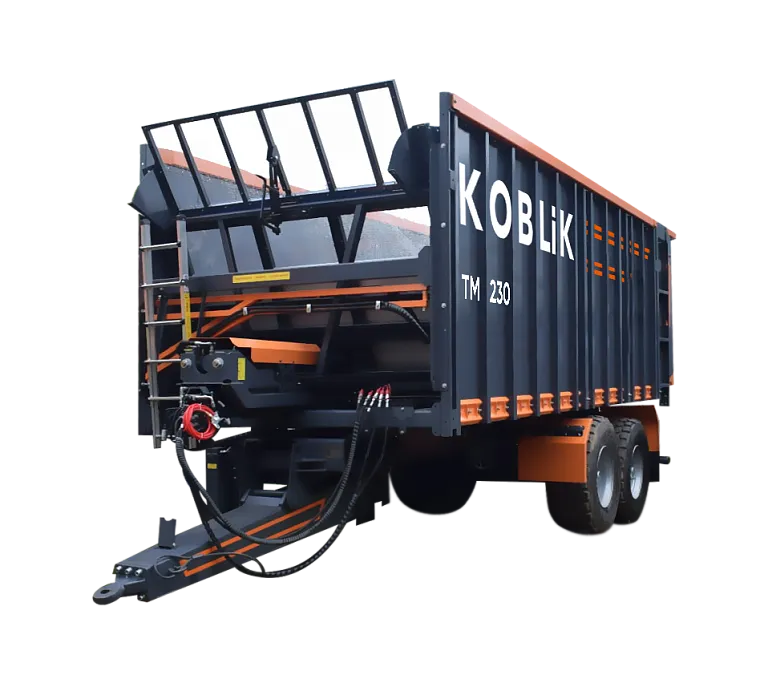

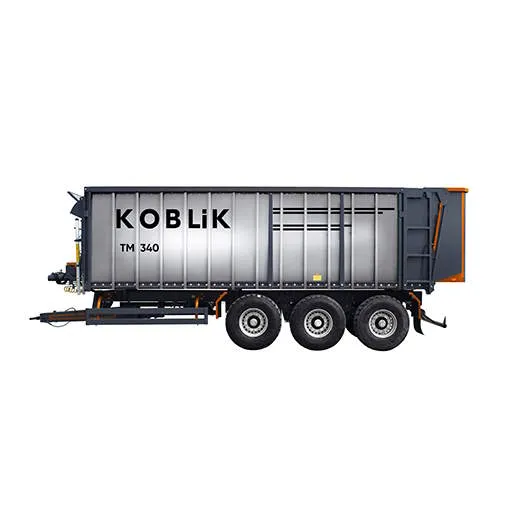

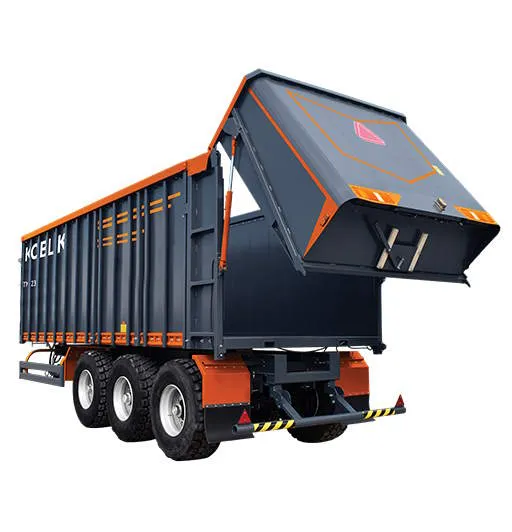

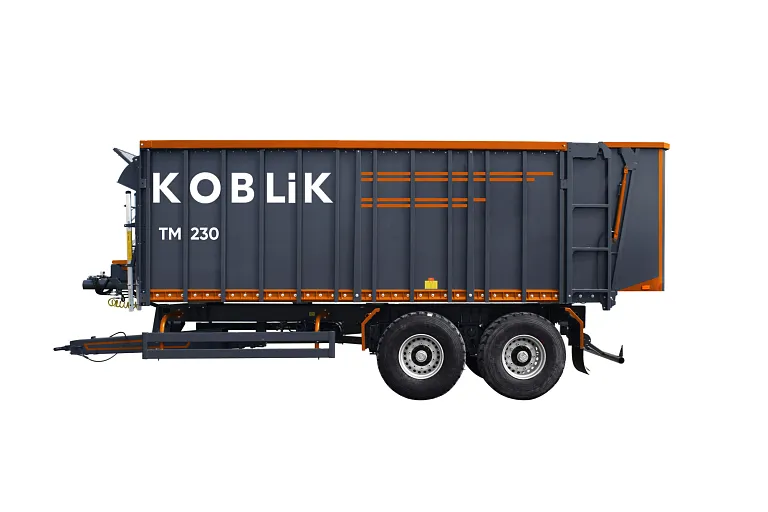

Push-off wall semi-trailers are used for transporting and unloading agricultural and construction loads (silage, grain, sawdust, manure, compost, root crops, sand, gravel, snow).
Payload up to 30 t
Model
Volume, m³
up to 40
Advantages
Large hopper volume
Compared with other types of transport trailers
Versatile design
Suitable for transporting various loads and unloading in low buildings (grain stores)
Push-off wall semi-trailers are designed for transporting and unloading various agricultural and construction loads. They are effective for transporting and mechanically unloading silage, grain, sawdust, manure and compost, as well as "heavy" loads — root crops, sand, gravel or snow; trailers of this type generate income all year round.
Data
Payload, max, t
from 20 to 30
Volume, m³
from 31 to 40
with a set of solid extension sides (h=250 mm)
from 34.7 to 44
with a set of mesh extension sides (h=450 mm)
from 38 to 48
Overall dimensions (L/W/H), mm
from 9 100 to 10 140
2 550
3 540
Ground clearance, min, mm
400
Number of axles / of which self-steering
from 2/1 to 3 / 2
Transport speed loaded / unloaded, km/h, max
15 / 25
Required PTO power, kW (hp)
from 132.39-161.81 (180-220) to 161.81-220.65 (220-300)
