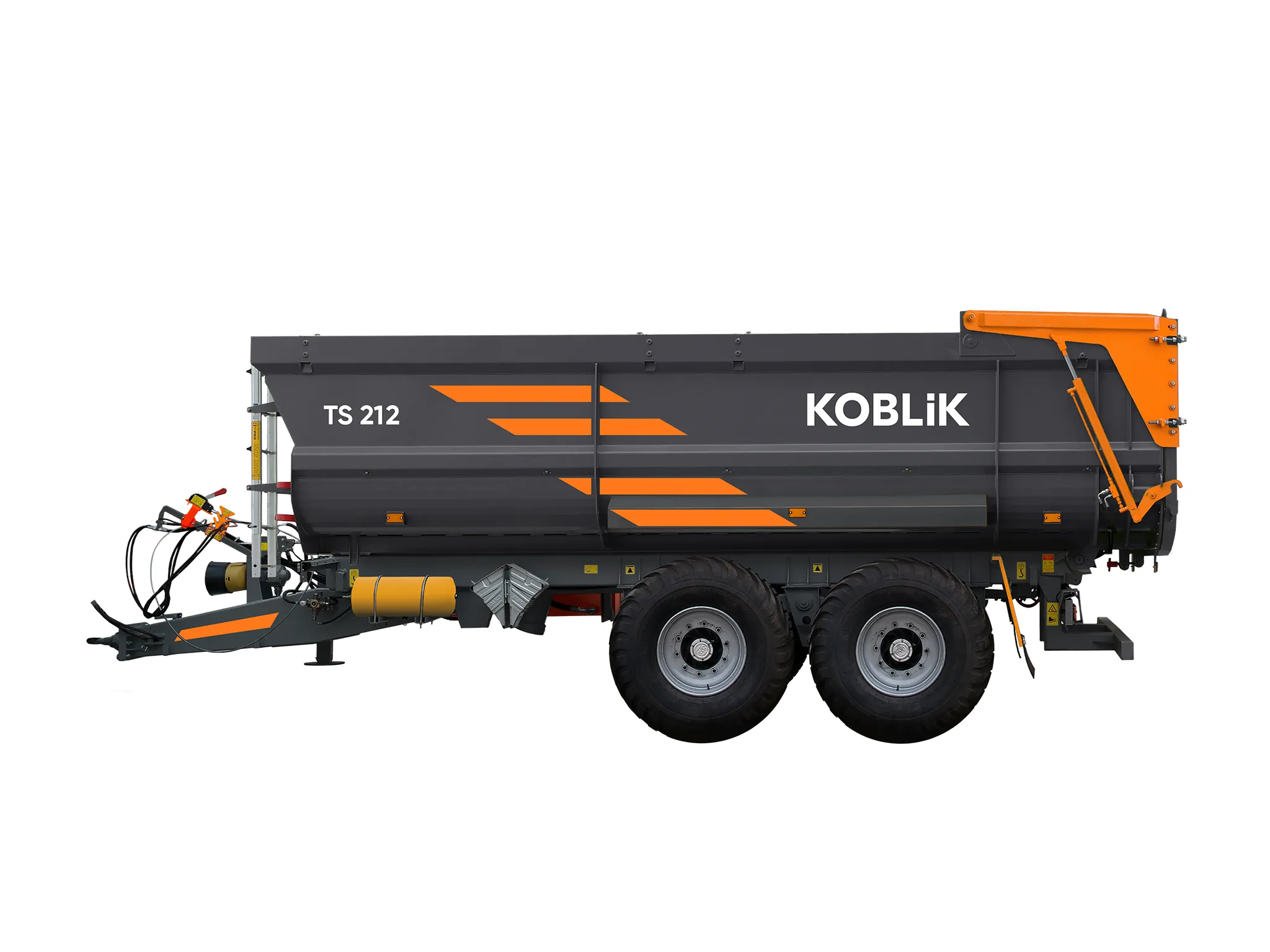

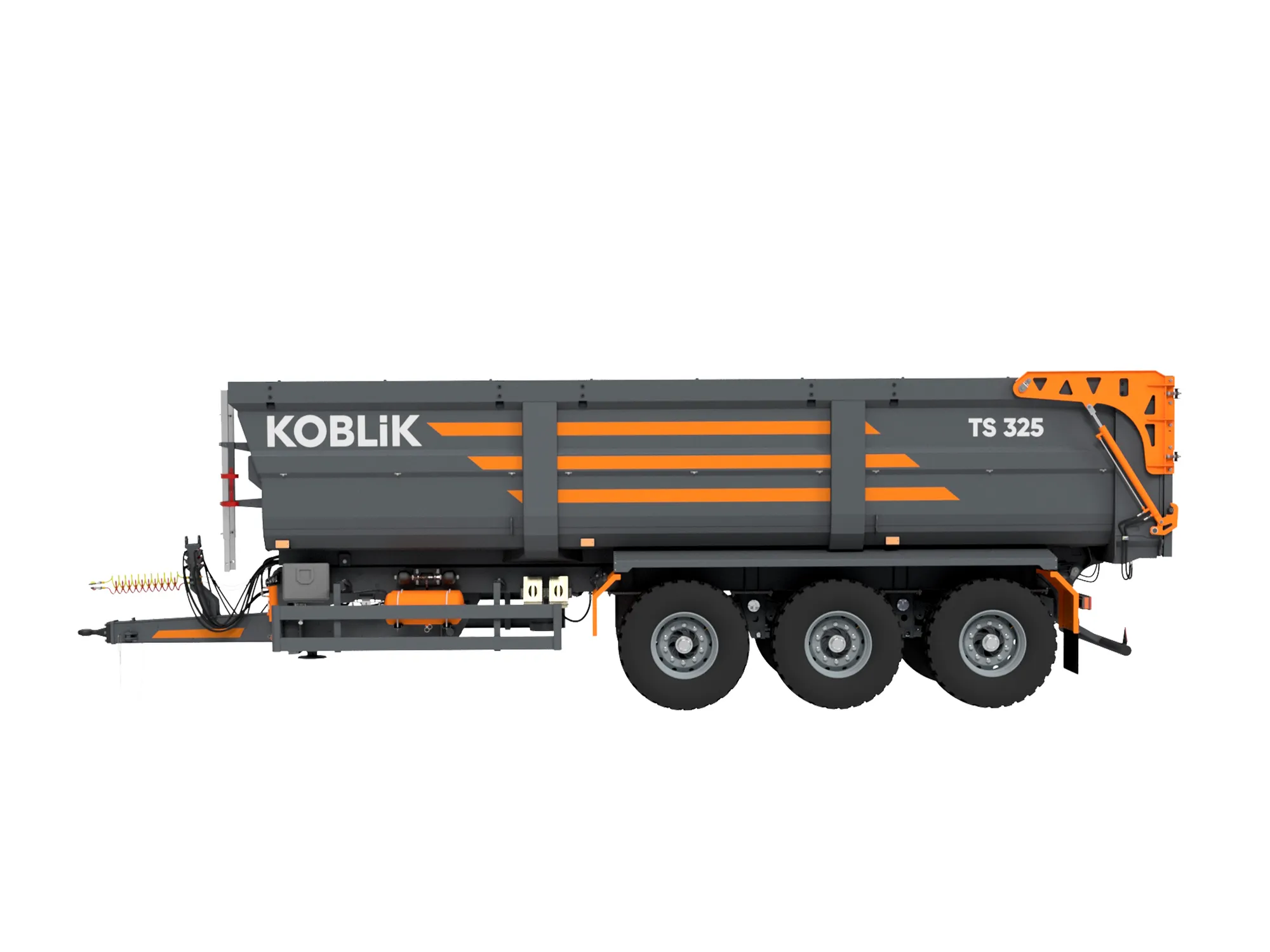

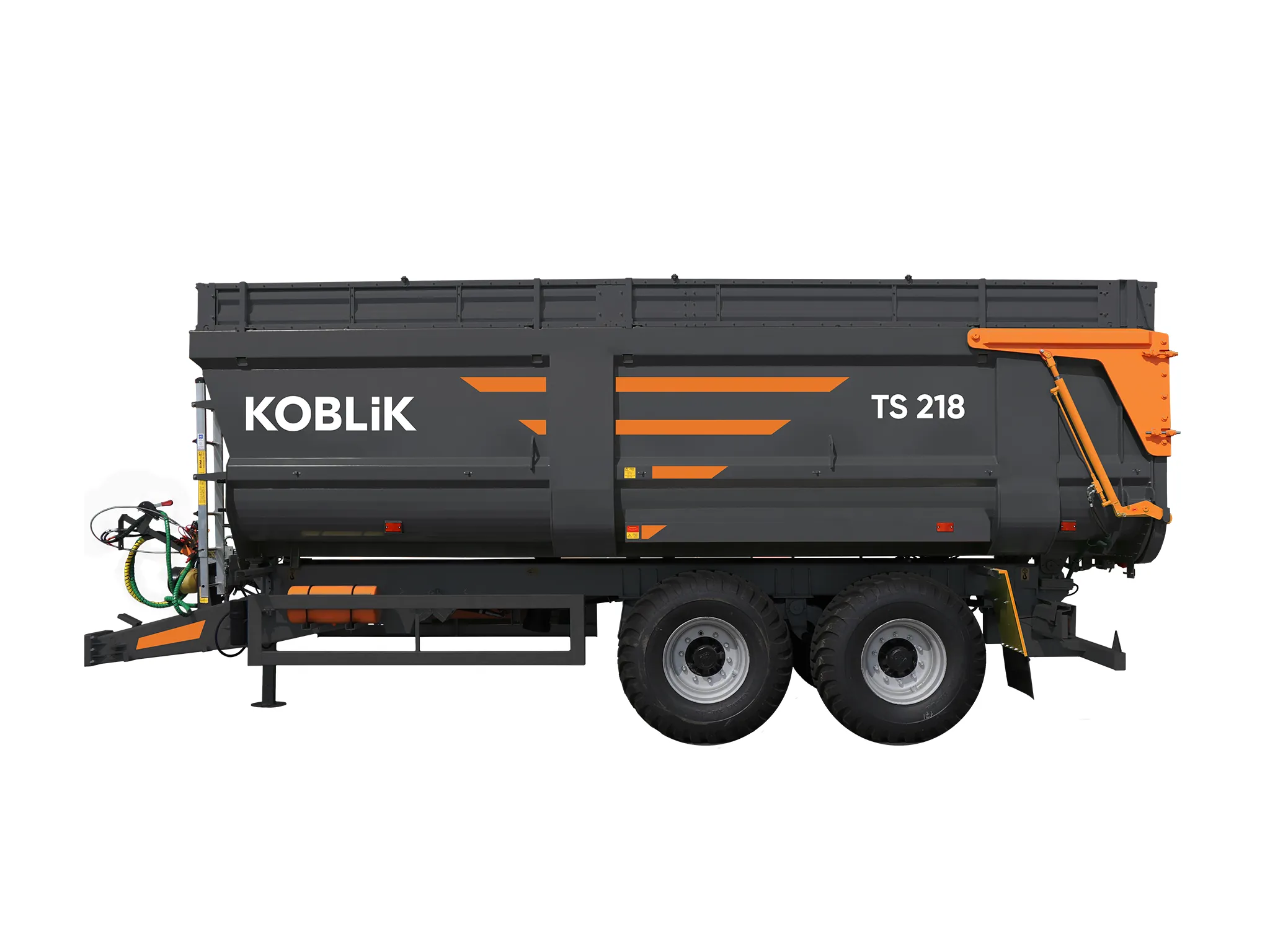

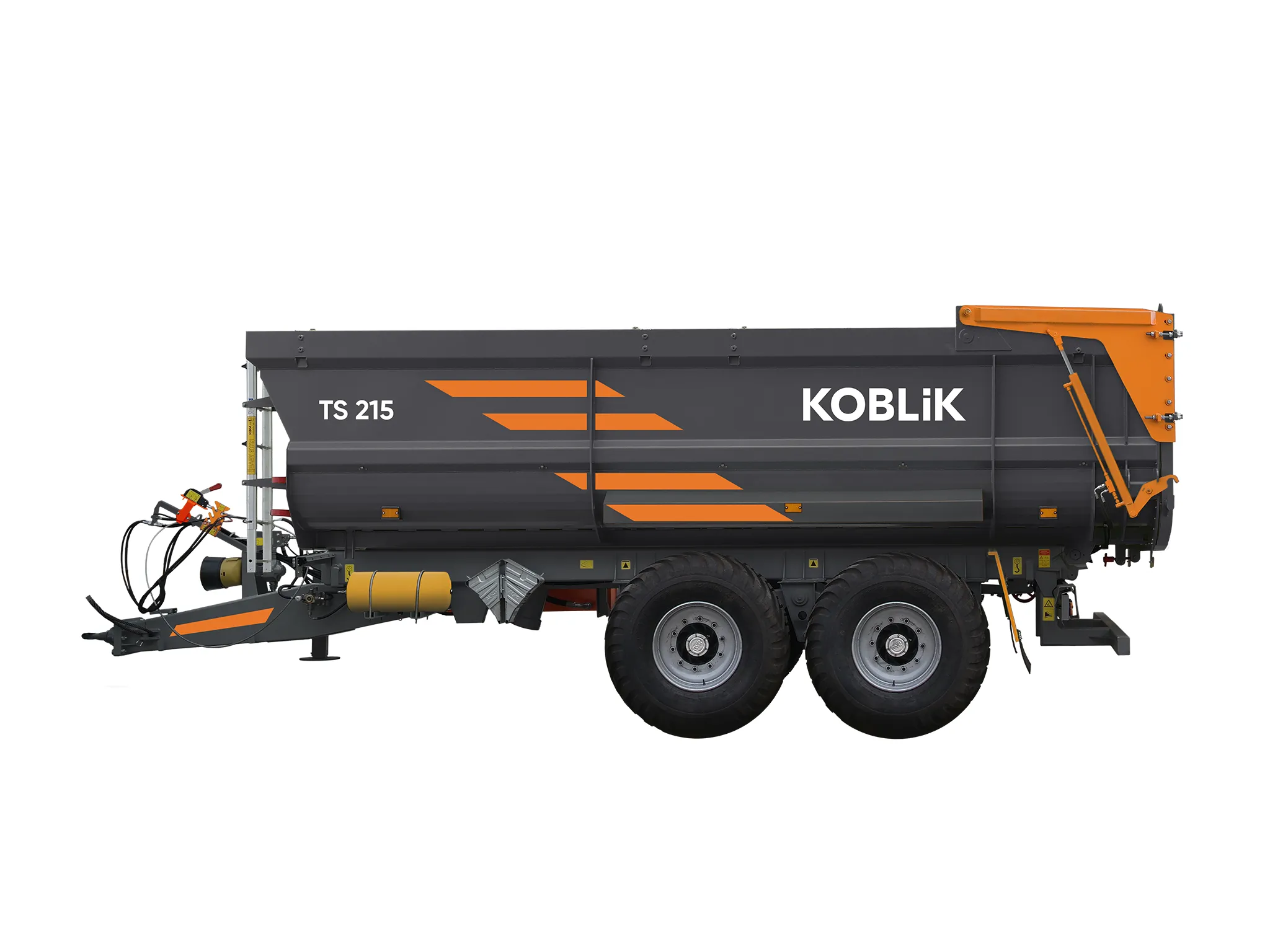

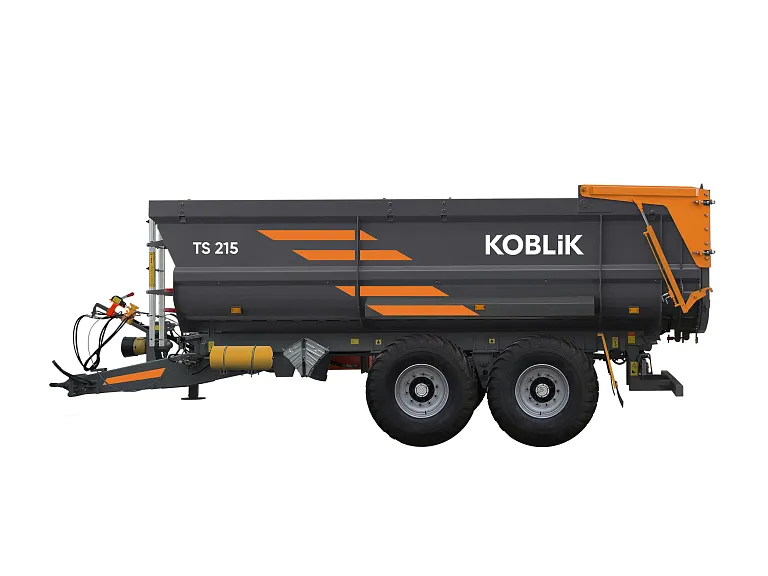

TS tractor tipping (bucket) semi-trailers

TS tractor tipping (bucket) semi-trailers

Name: TS tractor tipping (bucket) semi-trailers
Brand: KOBLiK GROUP
SKU: TS tractor tipping (bucket) semi-trailers

TS series tractor tipping (bucket) semi-trailers with a trapezoidal body are designed for transporting and unloading agricultural and construction loads (silage, grain, sawdust, manure, compost, root crops, sand, gravel, snow).

Model

Volume, m³

from 14 to 45.7

Advantages

Reduced dynamic loads on the trailer and tractor

Thanks to a parabolic leaf-spring suspension
Fast and convenient hitching to the tractor

Thanks to a locking check valve on the hydraulic drawbar support
Tightness when closed

Ensured by a seal and automatic locking of the tailgate
Special body shape

Thanks to an autonomous hydraulic circuit (optional)

Request a quote

Description

Description
Technical data
Gallery

TS series tractor tipping (bucket) semi-trailers are designed for transporting and unloading various agricultural and construction loads. The trailers have a trapezoidal body to make unloading easier. They are effective for transporting and mechanically unloading silage, grain, sawdust, manure and compost, as well as "heavy" loads — root crops, sand, gravel or snow.

Data

Payload, max, t	from 12 to 25
Volume, m³	from 14 to 45.7
Weight, t	from 5.7 to 8.3
Overall dimensions (L/W/H), mm	from 7 720 to 9 950
	from 2 520 to 2 550
	from 2 620 to 3 980
Ground clearance, mm	from 400 to 460
Transport speed loaded / unloaded, km/h	15 / 25
Number of axles / of which self-steering	from 2/1 (option) to 3/2
Hitching	upper / lower hitch
Tractor traction class / Power, kW, min (hp)	from 2 / 81 (110) to 5 / 221 (300)
Tyre size (base version)	from 550 / 60 R22.5 to 5 / 221 (300)
