SP series flat-bottom silos
Flat-bottom silos — a reliable solution for storing grain with a volume from 417 to 25,450 m³ (up to 20,360 tonnes). Equipped with an active ventilation system, a high-strength galvanized-steel structure and a convenient gravity discharge system — they ensure grain preservation with minimal losses.
from 417 to 25 450 m³Model
SP series flat-bottom silosAdvantages
-
Suitable for all regions
The silo design is adapted to all types of wind, snow and seismic loads
-
The trestle supports are designed specifically for the silo bodies and roofs
so no additional supports are needed
-
Use of high-quality steel
Manufactured to European standards, with a zinc coating of no less than 350 g/m²
-
The silo parts are supplied in factory packaging
In strict sequence and completeness for proper assembly
-
The silos are manufactured on high-precision robotic equipment
Using a robotic stiffener-rib bending machine, a robotic panel-forming line and a laser metal-cutting complex, the parts fit together perfectly. The laser also marks each part, which makes silo assembly easier
Description
- Description
- Technical data
- Gallery
- Documents
SP series flat-bottom silos: reliable grain storage with minimal losses
SP series flat-bottom silos are the optimal combination of capacity, reliability and modern technology.Key features:
- Capacity: volume from 417 to 25,450 m³, storage of up to 20,360 tonnes of grain.
- Efficient discharge: most of the grain is discharged by gravity through special openings in the flat bottom.
- Storage versatility: the silos are suitable both for long-term storage of conditioned grain and for temporary storage of wet grain (with ventilation and cooling).

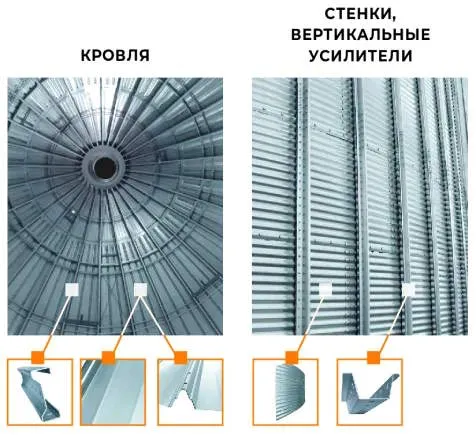

- High-strength materials: the walls and vertical stiffeners are made of high-strength steel grades using modern metalworking technologies.
- Roof truss system for silos over 11.45 m in diameter — made of galvanized high-strength sigma profiles (up to 4 mm thick).
- Reinforced roof structure: roof sheets with stiffening ribs and reliable sealed joint assemblies.
- Manufacturing precision: the tolerance for the process holes is no more than 0.003 mm.
Loading and unloading systems:
- Conveyor galleries of various widths (1,400 mm, 2,100 mm, 2,480 mm) to accommodate one, two or three conveyors.
- A gentle silo-loading system.
- A gravity side-discharge system.
- Enclosures for open-type belt conveyors (made of profiled metal sheet or sheet polycarbonate) for protection against precipitation.

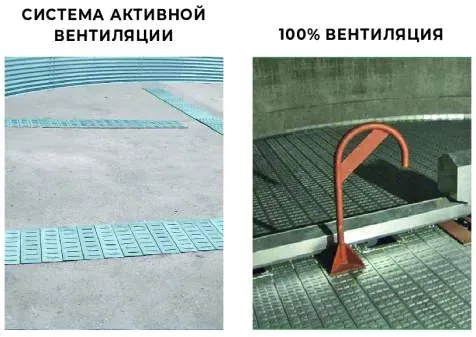

- Active ventilation as standard:
- roof air ducts in the form of TsAGI deflectors (operate thanks to the reduced pressure created by the wind);
- perforated panels for high-quality aeration of the product.
- Optional ventilation with 100% floor-area coverage — for maximum efficiency.

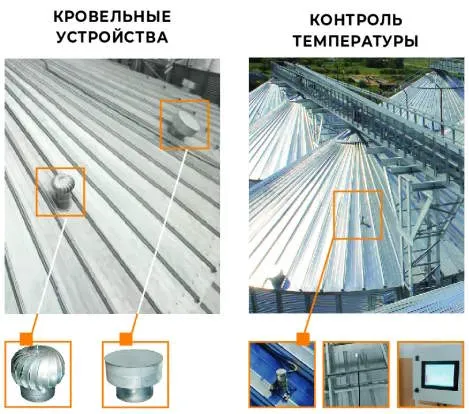

- Turbo deflectors (optional) — increase ventilation efficiency fourfold thanks to the rotation of the active head under wind action.
Thermometry system for monitoring grain temperature:
- fastening elements and from 3 to 19 suspensions to the roof;
- thermal suspensions with sensors;
- a thermal-suspension polling unit;
- the ability to monitor using a portable reader or via the computer in the operator's station.
Additional conveniences:
- a ladder on the silo wall (from the service platform to the roof);
- an additional service hatch with a service platform.
