B series open belt conveyors
Open belt conveyor
from 45 to 640 t/hModel
B series open belt conveyorsAdvantages
-
Gentle product transport thanks to the low speed (2.0 m/s) and the working element (the belt)
-
Loading of floor-storage facilities
-
Loading of concrete silos by means of a tripper cart
Description
- Description
- Technical data
- Gallery
The belt conveyor is designed for the horizontal transport of grain crops, pellets and/or powdered bulk materials in the agricultural sector — mainly in grain and feed elevators and breweries — as well as of various bulk cargoes. The conveyor is intended to work as part of a complex with transport equipment included in the process lines of grain-cleaning and drying complexes, elevators, oil-extraction plants and other explosion- and fire-hazardous facilities for the storage, processing and use of plant raw materials. The conveyor is used in industry and agriculture, namely for grain (fodder, food and seed), oilseed and legume grains, and for transporting products in powder form.
Key features:
Key features:
- Open and unprotected from precipitation.
- Protected from precipitation, with an open bottom.
- With a tripper cart in 3 directions.
- With tensioning stations for placement on galleries, with gravity tensioning.
- With tensioning stations for under-silo placement.
- Unloading cart (optional)

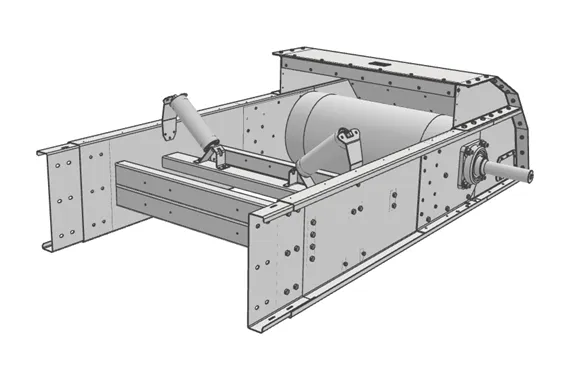

Drive station

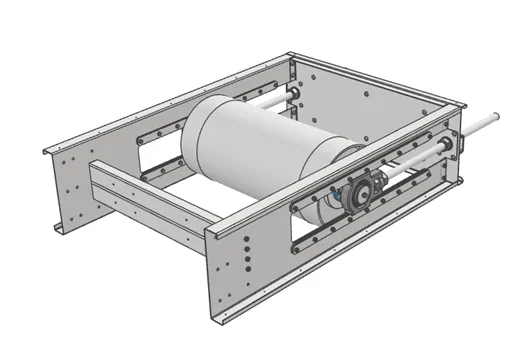

Tensioning station
Additional tensioning station

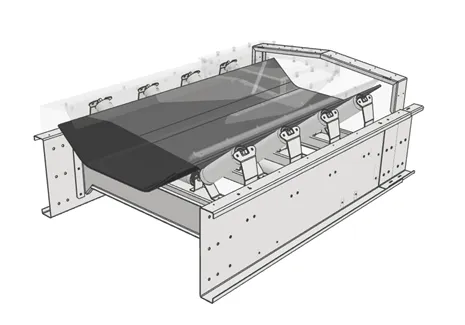

Loading section
Extension section

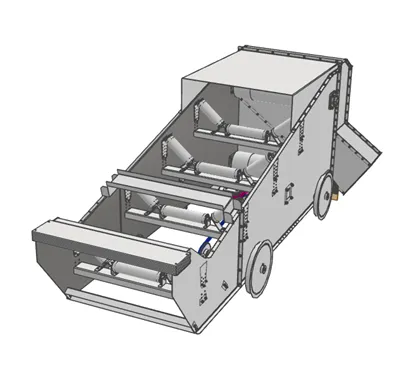

Unloading cart
