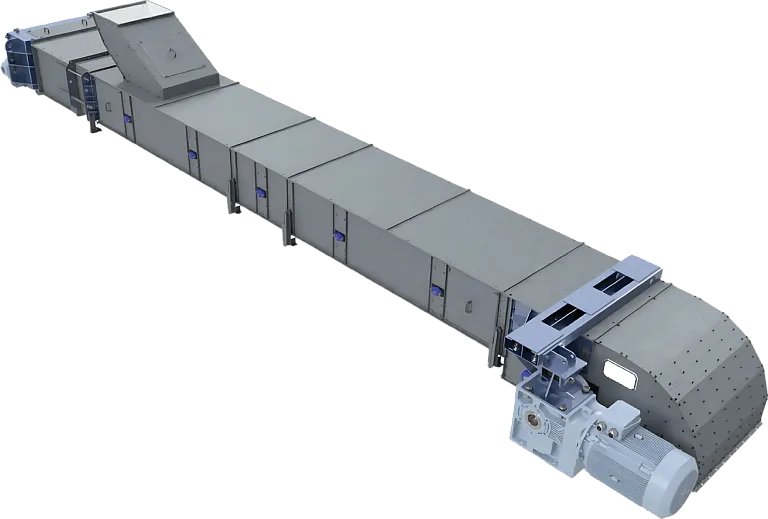

BK series enclosed (reel) belt conveyors

The BK-type belt conveyor is designed for transporting grain and its processing products, oilseed-crop seeds and other dry (non-sticky) bulk material. The conveyors are installed on the process lines of grain-cleaning and drying complexes, elevators, oil-extraction plants and other facilities for the storage, processing and use of plant raw materials. The design of the BK belt conveyor is a fully enclosed type with an automatic belt-cleaning device.

Key advantages:

• Low energy consumption
• Length of up to 130 metres
• Low product damage
• Ease of maintenance
• Durability in use
• Explosion/fire safety is enhanced through the use of non-combustible and antistatic materials
• Convenient belt tensioning (guides and a roller system are included)
• A large number of service hatches
• Mid-range cost
• Designed for intensive operation
• High repairability

Composition of the BK series:

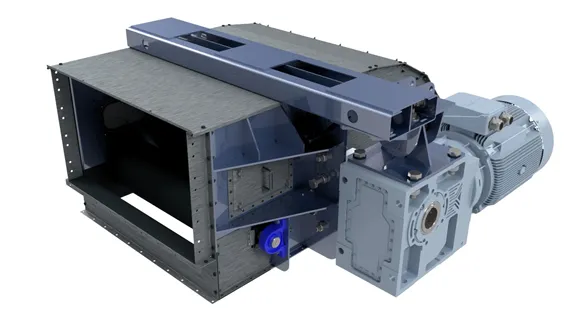

Vulcanised rubberised drive drum, shaft material — 30KhGSA

 Linear reel-type sections with a removable cover (with an upper overlay preventing moisture ingress at the joint) and a removable bottom (lined with graphite-filled antistatic PE 500 lining, 10 mm thick)

Self-cleaning (spiral) tensioning drum, shaft material — 30KhGSA

Reel with two half-axles for fastening to the housing. Cone material — "steel 08", mechanically hardened (work-hardening).

The cone is manufactured by rotary drawing (initial material 6 mm thick, 4.5 mm in the finished product)

Loss-return device (a plough in the form of a V-shaped scraper, paddles on the tensioning drum, guides)

Feed hopper (flow former; lined with graphite-filled antistatic PE 500 / TPU lining, 10 mm thick)
