BR series enclosed belt conveyors
BR series
up to 1 200 t/hModel
BR series enclosed belt conveyorsAdvantages
-
Fault tolerance
All bearing assemblies are located away from the dust zone
-
Efficiency
The design of the duct and the tensioning station with a self-cleaning drum returns dust and spilled product back onto the working run
-
Ease of operation
Of the optimised design
-
Safety
When operated in enclosed or underground galleries, it does not release dust beyond the housing
Description
- Description
- Technical data
- Gallery
The BR-type belt conveyor is designed for transporting grain and its processing products, oilseed-crop seeds and other dry (non-sticky) bulk material.
The conveyors are installed on the process lines of grain-cleaning and drying complexes, elevators, oil-extraction plants and other facilities for the storage, processing and use of plant raw materials.

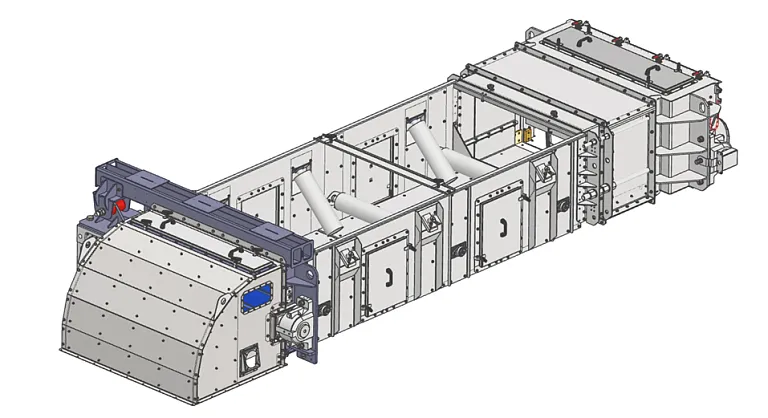

The design of the BR belt conveyor is a fully enclosed type with an automatic belt-cleaning device.
Key advantages:
The conveyors are installed on the process lines of grain-cleaning and drying complexes, elevators, oil-extraction plants and other facilities for the storage, processing and use of plant raw materials.
The design of the BR belt conveyor is a fully enclosed type with an automatic belt-cleaning device.
Key advantages:
- Gentle product transport thanks to the low speed (2.0–3.5 m/s) and the working element (the belt).
- A wide capacity range thanks to the range of gear ratios of the geared motor.
- Replaces up to 3 chain conveyors when loading beneath silos.
- Enables transport of up to 200 metres where product spillage is not permitted.
Composition of the BR series:

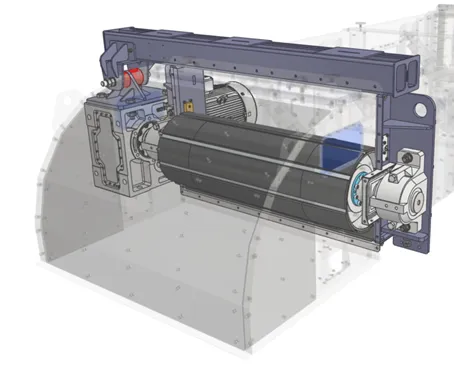

Drive station

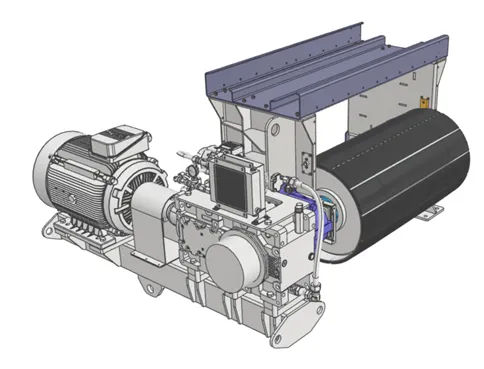

Drive station (from 100 m)

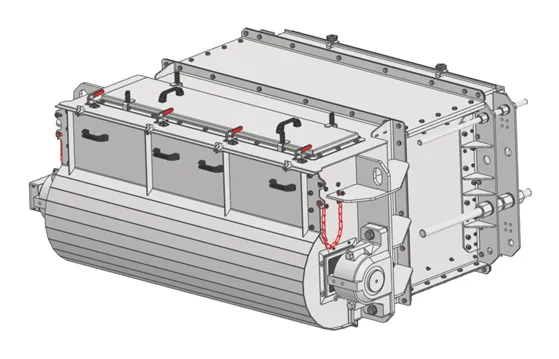

Tensioning station

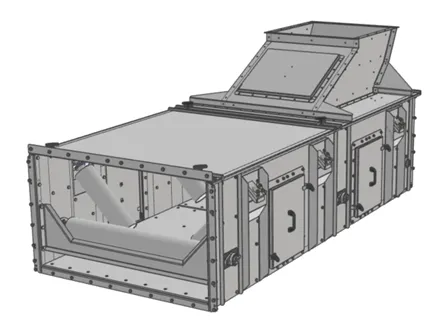

Loading section
Diverter valve
