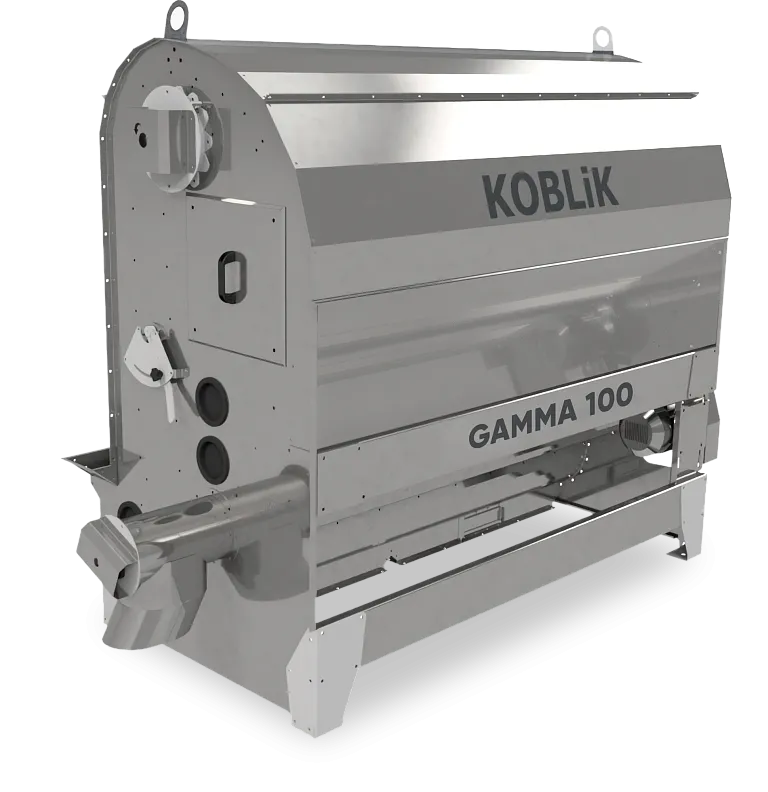

GAMMA 100 aspiration column

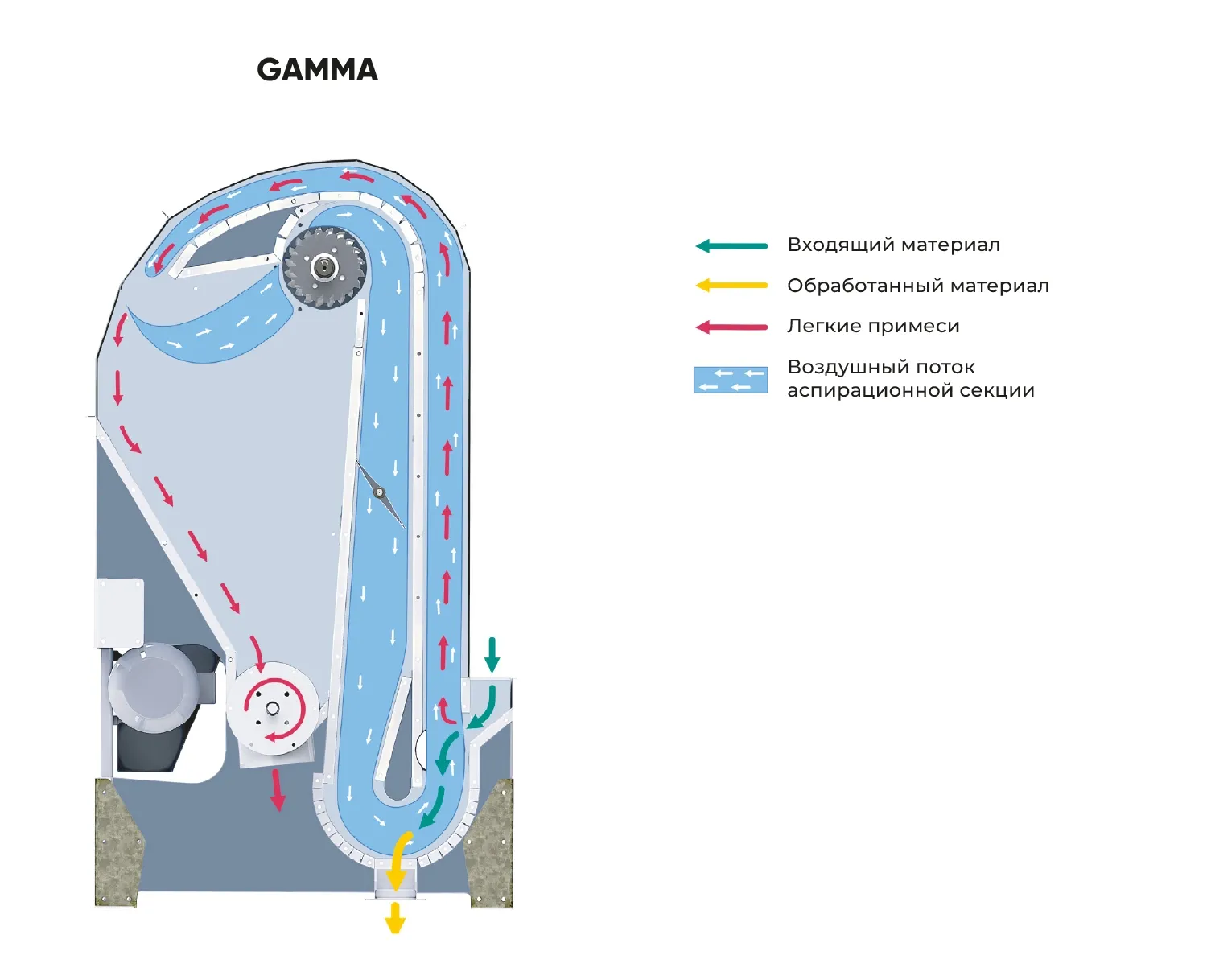

The GAMMA aspiration column is designed to separate grain from its hulling products and from impurities with aerodynamic properties.
up to 100 t/h
Model
GAMMA 100 aspiration column
Advantages
-
Effectively complements
All sieve machines from domestic and foreign manufacturers
-
Adjustable air speed
The air passing through the grain mass makes it possible to separate not only light impurities but also shrivelled and broken grain, as well as weed seeds
Request a quote
The GAMMA-family aspiration column is an effective solution for grain-processing operations. The unit provides high-quality separation of grain from hulling products and aerodynamic impurities with a capacity of up to 100 t/h. The optimal choice for improving the purity of grain raw material during post-harvest processing stages.
Data
GAMMA 100 aspiration column
| Nominal capacity, t/h, min |
100 |
| Overall dimensions with accumulation hopper (L/W/H), mm |
2 476 |
|
930 |
|
1 846 |
| Fan speed, rpm |
from 700 to 900 |
| Weight with full set of working parts, kg |
4 450 |
| Total installed power, kW |
3.55 |
| Aspiration air flow, m³/h |
from 3 000 to 6 000 |
