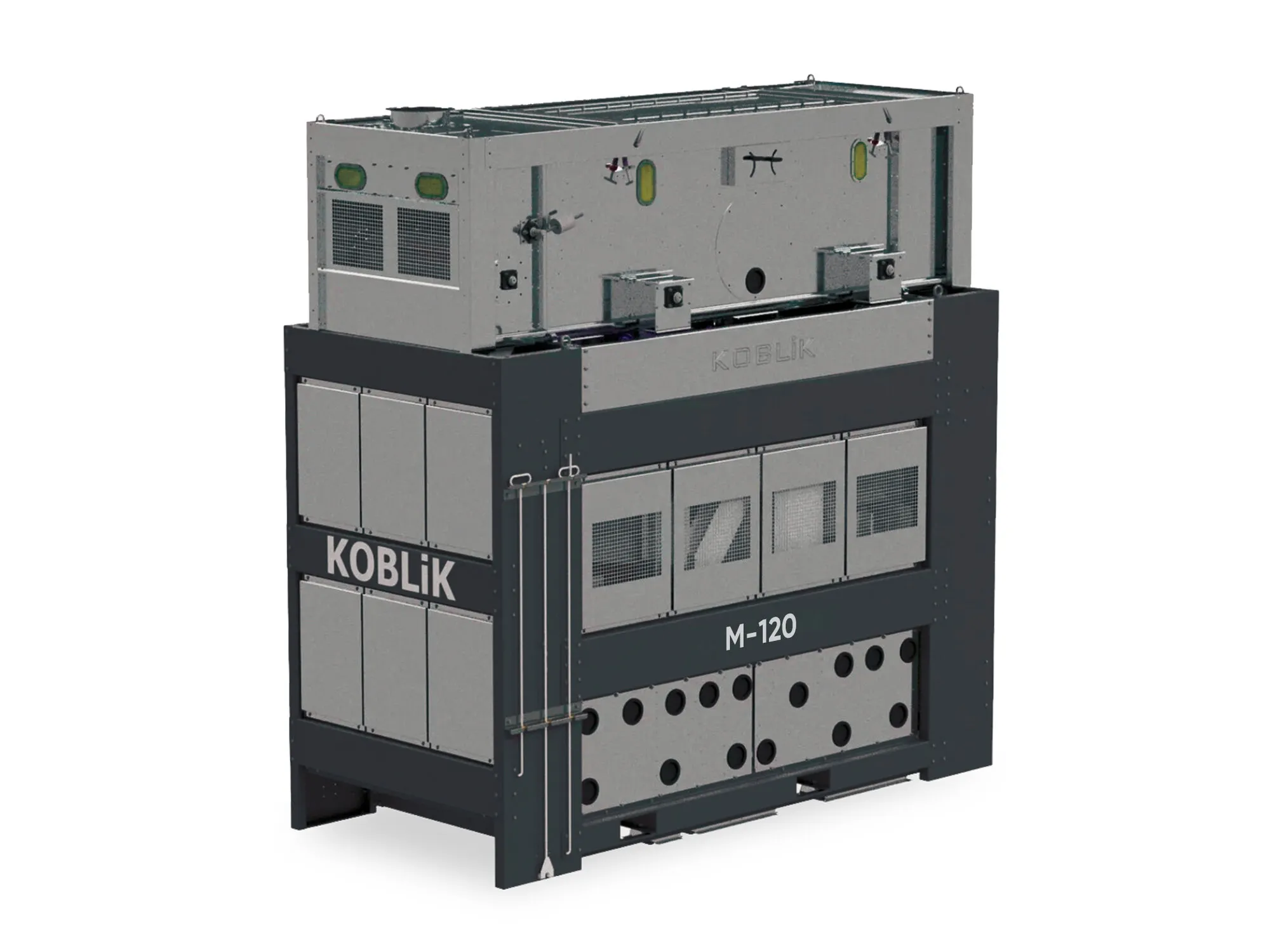

M grain pre-cleaning and primary cleaning separators
The M-120 and M-150 separators are for the preliminary and primary cleaning of grain. They process cereals, legumes, groats, industrial and oilseed crops and grass seeds, removing weed impurities by air flow and sieves. Suitable for installation first in a seed line.
from 60 to 150 t/hModel
Capacity
from 60 to 150 t/hAdvantages
-
High throughput
Even when handling wet and heavily contaminated product
-
The sieves have a dual effective cleaning system
Balls and a scraper conveyor, which promotes even distribution of the material across the working width of the sieve frames
-
Removable sieve frames
Allow quick replacement of worn balls
-
Separate adjustment of the first- and second-stage aspiration air channels
Allows quick and precise adjustment of the air-flow speed at the inlet and outlet
Description
- Description
- Technical data
- Gallery
High-performance equipment for cleaning the grain heap — designed for the preliminary and primary (commercial) processing of cereals, legumes, groats, industrial and oilseed crops and grass seeds.
Key advantages:
Key advantages:
- High capacity — up to 150 t/h.

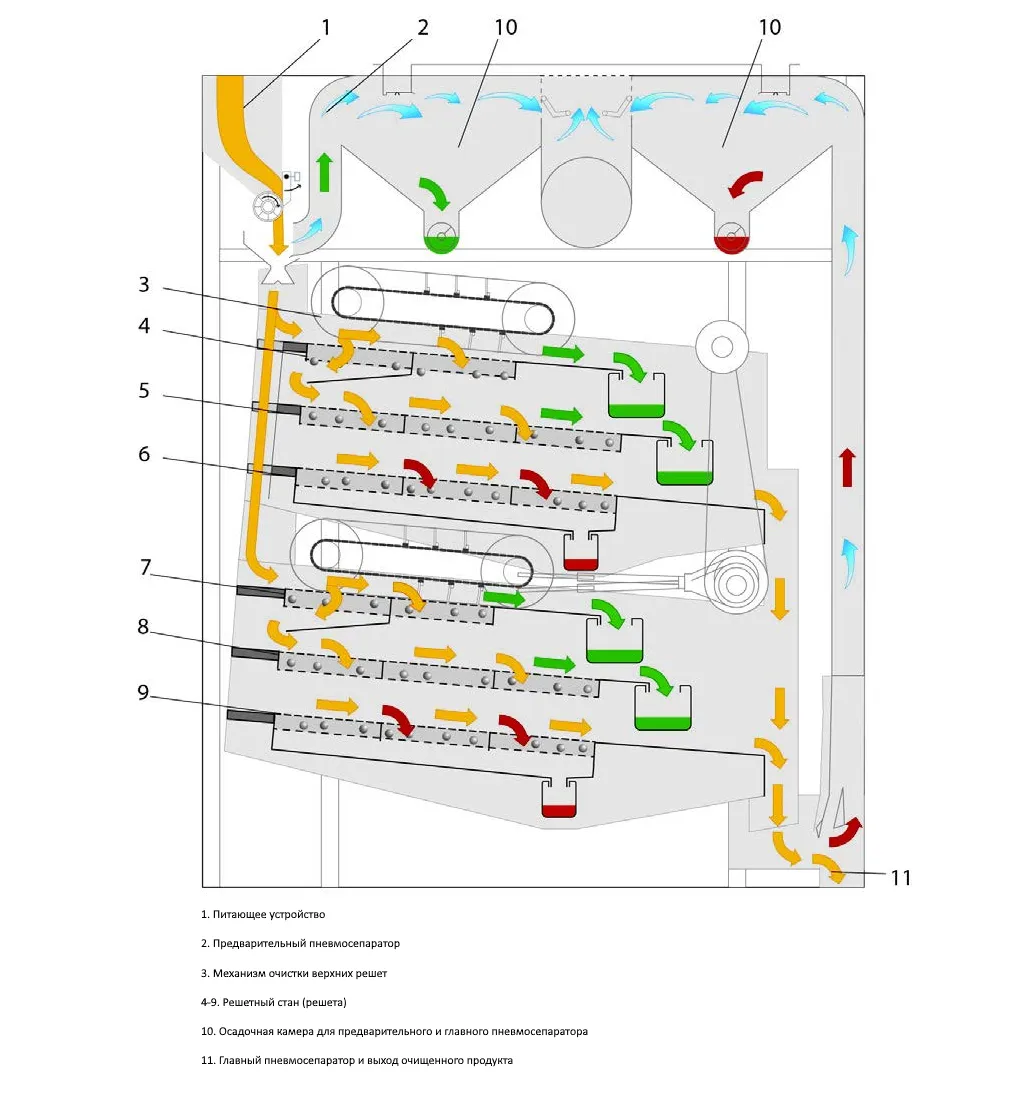

- High-quality impurity removal — effectively separates light, large and small weeds thanks to a combination of the sieve section and the aspiration system (dual-channel air flow).
- Handling of difficult material — maintains throughput when processing wet and heavily contaminated material.
- Durability — two balanced sieve frames reduce vibration, extending the machine's service life.
- Reliable sieve cleaning — a system with balls and a chain scraper minimises clogging.
- Ease of maintenance — removable frames for quick replacement of the balls.
- first machine in a seed line;
- work with contaminated heaps.
