Bestseller

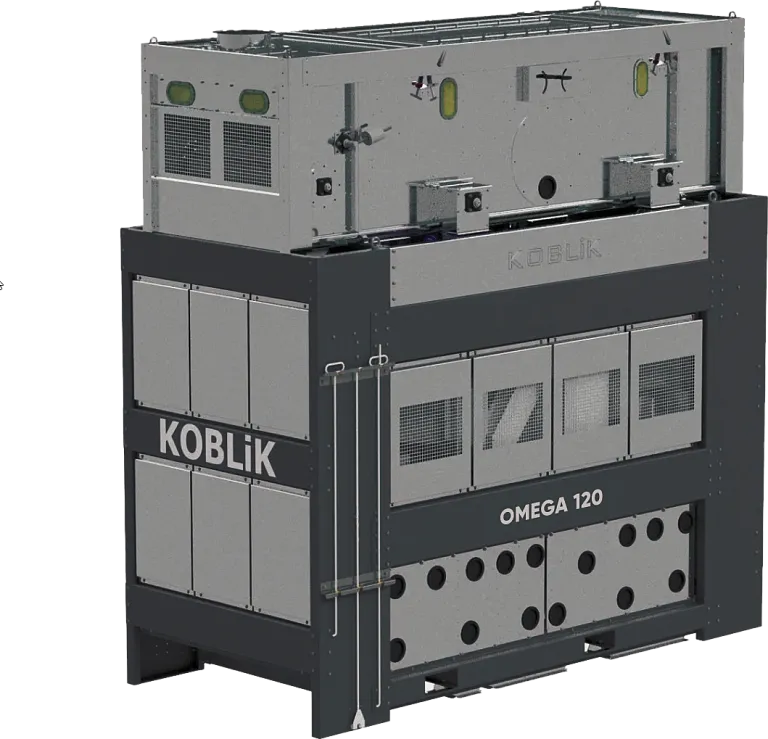

OMEGA 120 pre-cleaning and primary cleaning machine

up to 120 t/h

Special offer on KOBLiK equipment

High throughput

even when handling wet and heavily contaminated raw material.
Low specific load

on the sieve thanks to two sieve frames and six sieve planes with a working width of 1200 mm.
Powerful dual-channel air separator

ensures a high degree of removal of light impurities.
Distribution of unprocessed material

The well-proven ball sieve-cleaning system and chain scraper reduce the risk of sieve clogging to a minimum, ensuring good distribution of the unprocessed material across the entire working surface of the machine.

Description

OMEGA 120 pre-cleaning and primary cleaning machine

OMEGA 120 pre-cleaning and primary cleaning machine

Pre-cleaning, t/h	120
Commercial cleaning, t/h	60
Fan, kW	11.0-15.0
Sieve drive, kW	7.5
Feed profile roller, kW	0.37
Discharge auger of the main air separator	2 × 0.37
Sieve cleaning mechanism, kW (option)	2 × 0.37
Air supply (wheat), m³/h	9000
Working width, mm	1200
Sieve surface, m²	13.44
Weight, kg	4250
Length, mm	3750
Width, mm	1700
Height, mm	3805
Total weight, kg	4450

Request a quote
