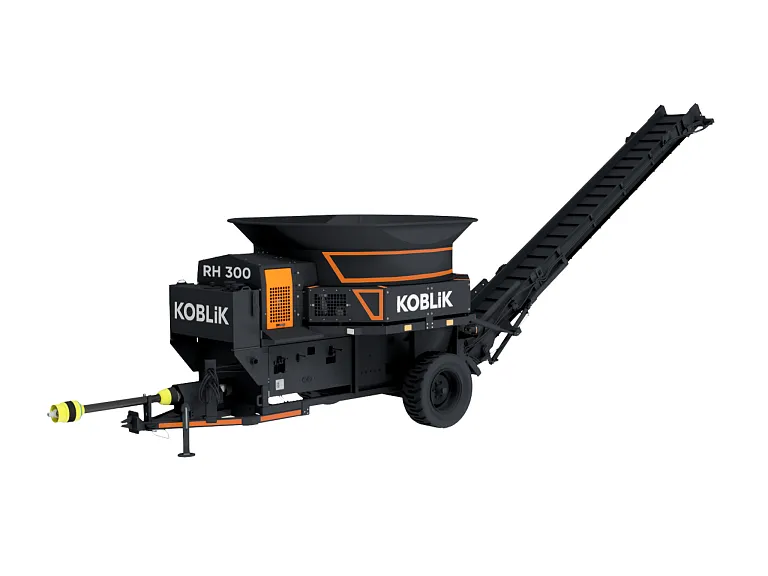

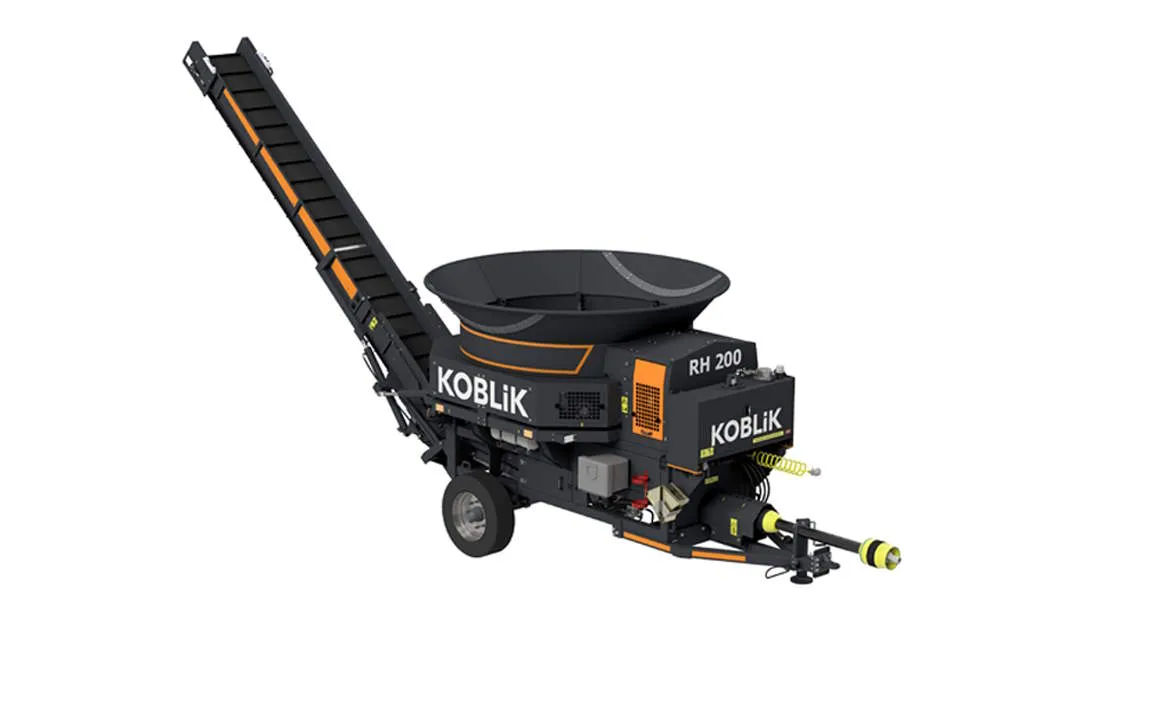

The straw shredder is designed for shredding roughage of any moisture content to an adjustable cutting length, and for crushing cereal grain and corn. Depending on your needs, you can control the cutting length of the material using a sieve from 2 mm to 100 mm
Data
Type
semi-trailer, shredder
Tub volume, m³
from 6 to 7.8
Payload, t
1.6
Loading height, mm
from 2800 to 2850
Dimensions in transport (with folded conveyor), mm, L/W/H
from 5930 to 6800
from 2550 to 3450
from 3220 to 3350
Track width, mm
from 2000 to 2375±10
Number of hammers, pcs
from 64 to 88
Nominal shredder capacity per hour of main time, max, t/h:
- shredding of straw and hay
from 30 to 40
- crushing of cereal grain and corn
from 110 to 150
- crushing of corn cobs
from 25 to 35
Rotor speed, min, rpm
2250
Number of augers, pcs
2
Tyres (base version)
from 265/70 R19.5 to 400/55 R22.5
Transport speed, max, km/h
10
Required tractor power, kW (hp)
from 96…147 (130…200) to 147…232 (200…315)
Request a quote
We will call you back, clarify the details and prepare a tailored offer for your needs.
