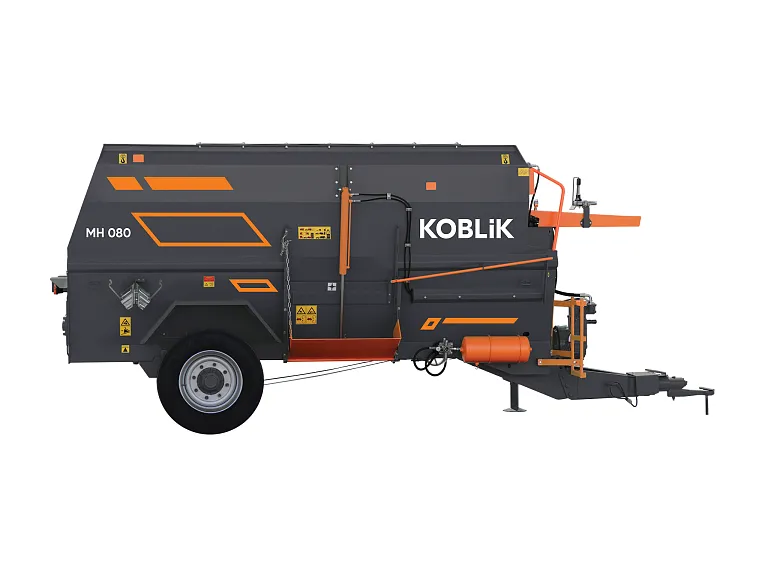

MH 080

A versatile solution for small and medium livestock farms.

The equipment is designed for:

• shredding;

• uniform mixing;

• precise distribution of complete feed mixes (CFM).

Ideal for preparing balanced rations for cattle and small ruminants.

Which feeds does it process?

It works effectively with a wide range of feed components:

• green mass;

• silage;

• haylage;

• loose and baled hay;

• straw;

• compound feed;

• root crops;

• briquetted feed additives;

• liquid feed components.

Key advantages

• Dosing accuracy. A built-in electronic weighing system provides strict control of component loading and unloading — you always know how much and which feed has entered the mix.

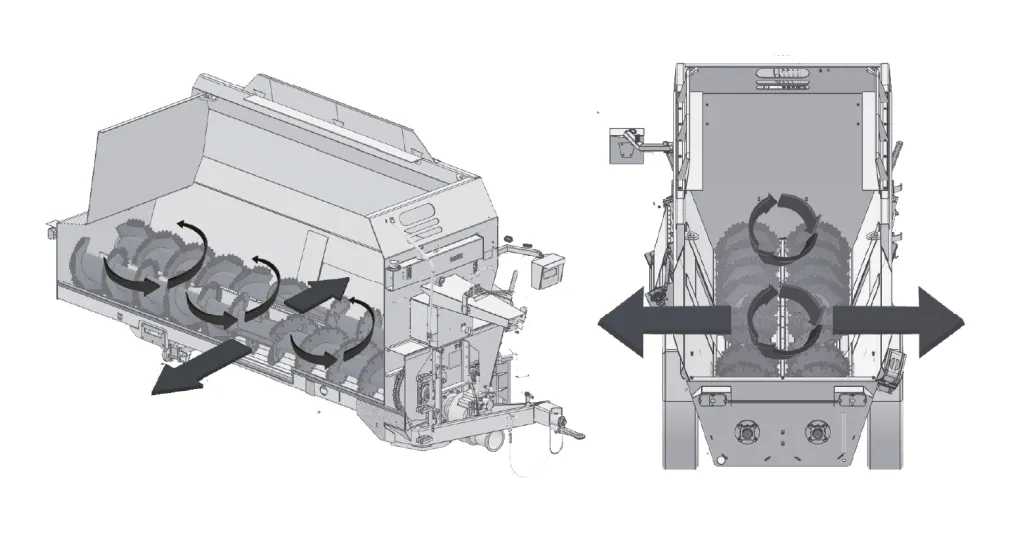

• Mix uniformity. The horizontal auger arrangement guarantees even mixing of all ingredients with no separation.

• Time savings. Fast CFM preparation: the full mixing cycle takes only 5–7 minutes after the last component is loaded.

• Versatility. The ability to process dry, wet, frozen and long-fibre feeds.

• Reliability. Construction from wear-resistant materials (including 10KhSND and S355 steel) ensures a long service life even under intensive use.

• Ease of use. Remote control from the tractor cab simplifies the operator's work.

• Flexibility of application. The option to install additional equipment (a grab loader, a loading cutter) to expand functionality.

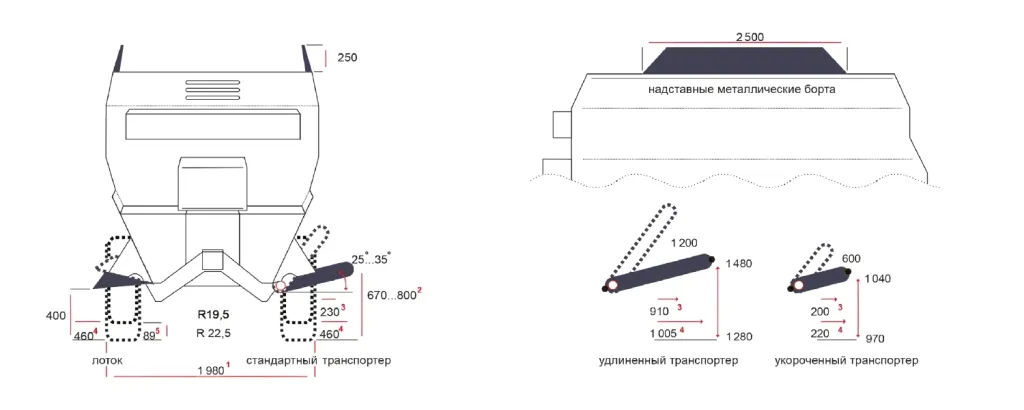

• Dimension over outer wheel surfaces R22.5, mm (base configuration) MH 120
• Conveyor discharge height at 25-35° tilt, mm
• Dimension for calculating the feed-mixer width on the conveyor side in transport position, mm
• Dimension for calculating the feed-mixer width with the chute / conveyor in working position at maximum opening, mm

* When using R19.5 wheels, all height dimensions are reduced by 89 mm
