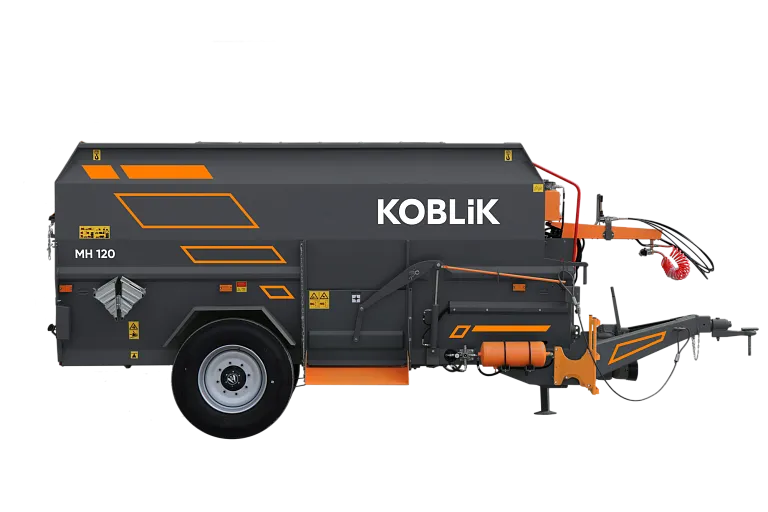

MH 120
Feed shredder-mixer-distributor with horizontal augers. Analogue of the ISRK-12 "KHOZYAIN".
Volume 12.8 m³Model
Payload
4 tAdvantages
-
Available in two versions, with an upper and lower hitch
For compatibility with different tractor models, including MTZ-type tractors
-
Can be used in standard buildings
Compact dimensions matching the tractor's geometry
-
Increased reliability and lower load on the hydraulic motor
Thanks to an autonomous hydraulic circuit
-
Wide-angle PTO shaft with safety and overrun clutches
With a maximum angle of up to 80°
-
Two-speed reduction gearbox
Even in the base configuration it allows four feed-mixing modes (saving time, engine life and 20% fuel)
-
High ground clearance
For operation in adverse road conditions
-
A set of metal extension sides
-
Weighing system on all models in the series
Description
- Description
- Technical data
- Gallery
A versatile machine for preparing and distributing complete feed mixes (CFM). It combines the operations of loading, transport, shredding, weighing and metered feed distribution.
Suitable for working with:
green mass;
silage;
haylage;
loose and baled hay;
straw (including from bales and stacks);
compound feed;
root crops;
liquid feed additives.
Key advantages
Versatility. Compatible with MTZ tractors and analogues (two hitch options — upper and lower).
Efficiency. CFM preparation time — only 5–7 minutes after the last component is loaded.
Resource savings. Reduces the load on the tractor's PTO and engine, cutting fuel consumption by 20%.
Reliability. A bottom made of wear-resistant 10KhSND steel, solid-drawn auger flights, an autonomous hydraulic system (works at temperatures down to –30 °C).
Accuracy. An electronic weighing system in the base configuration allows optimal rations to be composed.
High performance. A 12 m³ hopper feeds up to 1,000 head per shift.
Durability. A slat chain conveyor resistant to low temperatures and wear.
- Dimension over outer wheel surfaces R22.5, mm (base configuration) MH 120
- Conveyor discharge height at 25-35° tilt, mm
- Dimension for calculating the feed-mixer width on the conveyor side in transport position, mm
- Dimension for calculating the feed-mixer width with the chute / conveyor in working position at maximum opening, mm
* When using R19.5 wheels, all height dimensions are reduced by 89 mm
Operating features of machines with horizontal augers
