MV twin-auger

Name: MV twin-auger
Brand: KOBLiK GROUP
SKU: MV twin-auger

Twin-auger feed mixer wagons with vertical augers — for re-shredding, mixing and distributing complete feed mixes for cattle.

Volume from 12 to 34 m³

Model

Payload

from 3.5 to 7 t

Advantages

Fast shredding of feed components

Thanks to two turbo-augers with 8 knives
Uniform unloading

Thanks to the discharge chutes on the side of the mixer
Increased wear resistance

Thanks to stainless-steel liners up to 1 m from the hopper bottom and augers with stainless-steel overlays
Two counter-knives for shredding long-fibre feed

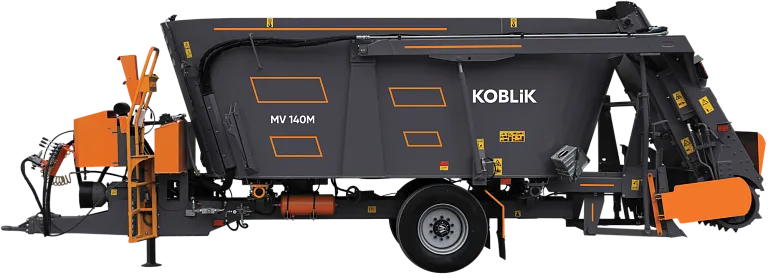

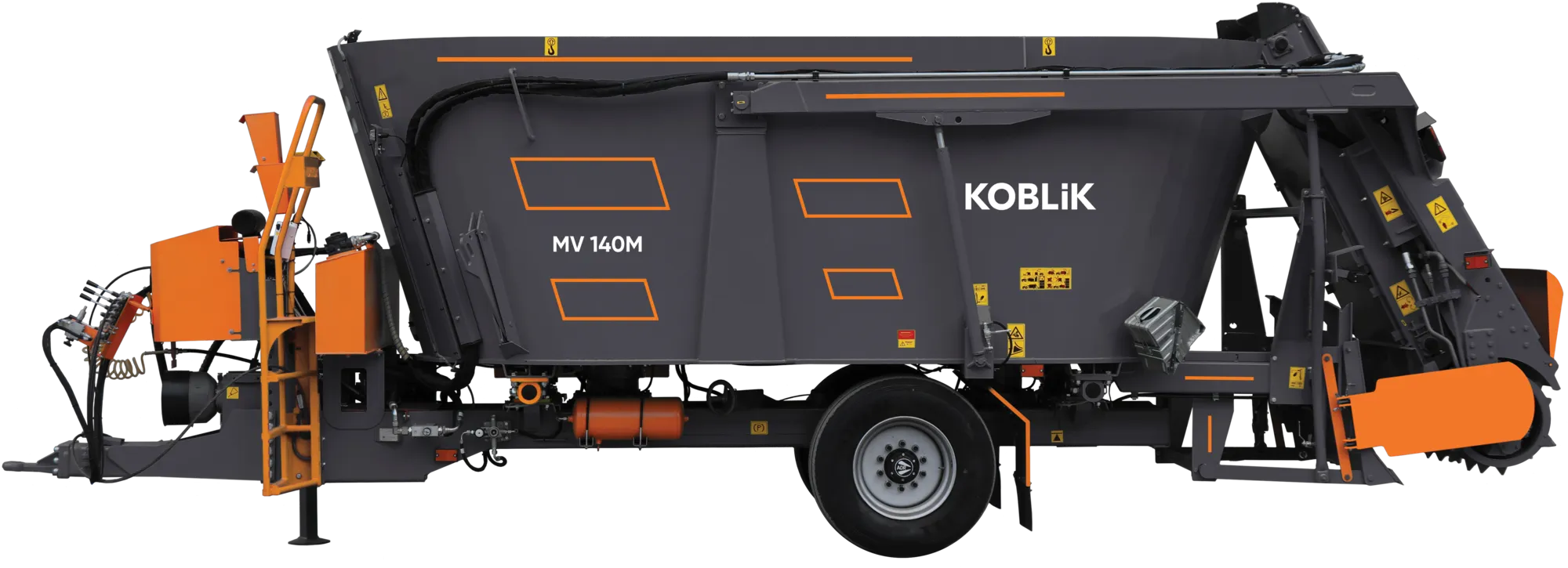

Self-loading via a loading cutter and a rear-mounted conveyor (MV 140M)

Request a quote

Description

Description
Technical data
Gallery

The MV series comprises professional mixer-feeders with vertical augers, developed for modern livestock complexes. The equipment provides a full feed cycle: from re-shredding and mixing to the precise distribution of complete mixes to cattle.

Data

Type	semi-trailer
Power frame version	frame
Unloading type	discharge window front right / rear left
	reversible discharge conveyor
	2 discharge windows
Weight, max, t (version with discharge conveyor)	from 5.6 to 8.1
Weight, max, t (version with conveyor)	from 6.2 to 7.5
Payload, t	from 3.5 to 7
Volume, m³	from 12 to 21
Overall dimensions (version with discharge chute) (L/W/H), mm	from 6 625 to 8 180
	from 2 490 to 2 775
	from 2 540 to 3 220
Overall dimensions (version with conveyor) (L/W/H), mm	from 6 890 to 7 465
	from 2 420 to 2 550
	from 2 540 to 3 220
Width over wheel side surfaces, mm	from 1 875±5 to 2 240±50
Bottom / wall thickness (mm)	20/8
Maximum side unloading height (maximum barrier height), mm	from 835 to 980
Loading height, min, mm	from 2 255 to 2 890
Ground clearance, min, mm	from 300 to 380
Transport speed loaded / unloaded, km/h	8 /12
Working speed during feed distribution, km/h	5
Required tractor power, kW (hp)	from 54 (75) to 90 (122)
Tyre size (base version)	from 265/ 70 R19.5 to 295/ 80 R22.5 295/ 80 R22.5
Number / type of augers	2
* discharge window front right / rear left
** reversible discharge conveyor
*** 2 discharge windows
Technical specifications are not binding and may vary depending on the configuration
