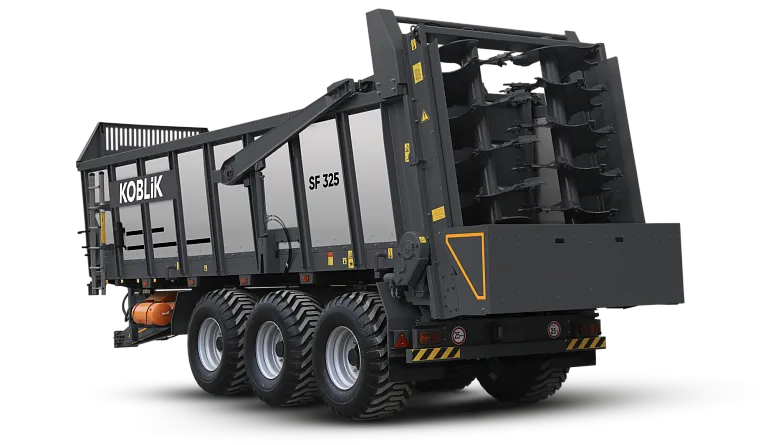

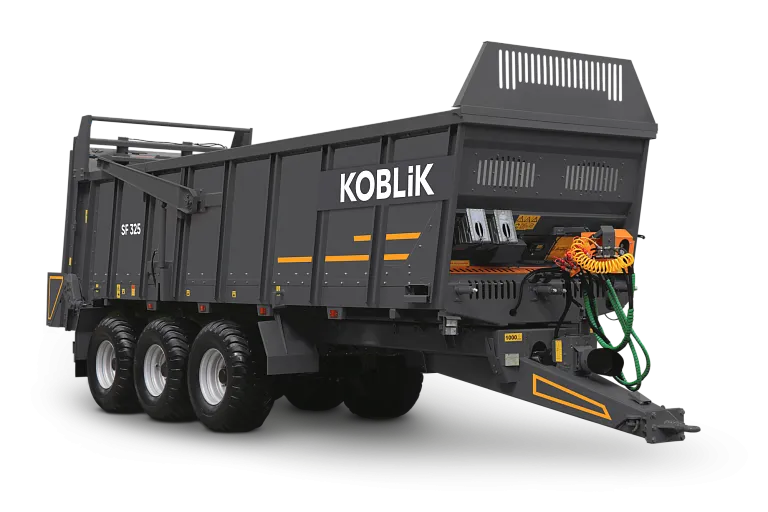

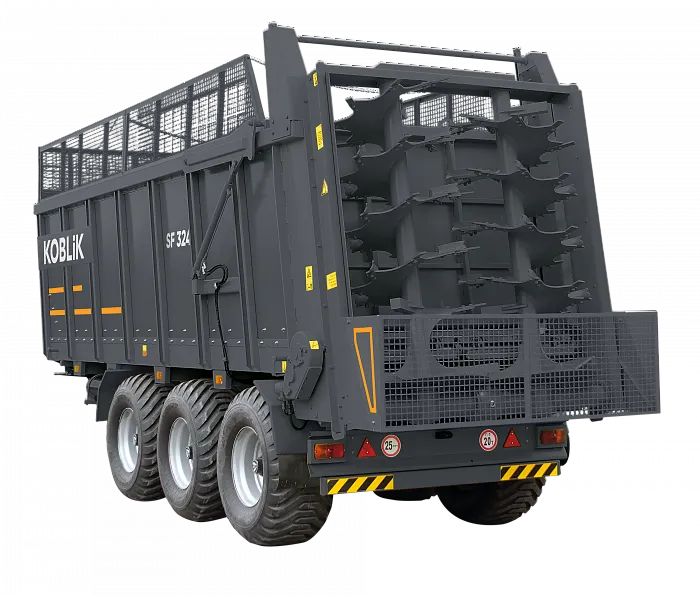

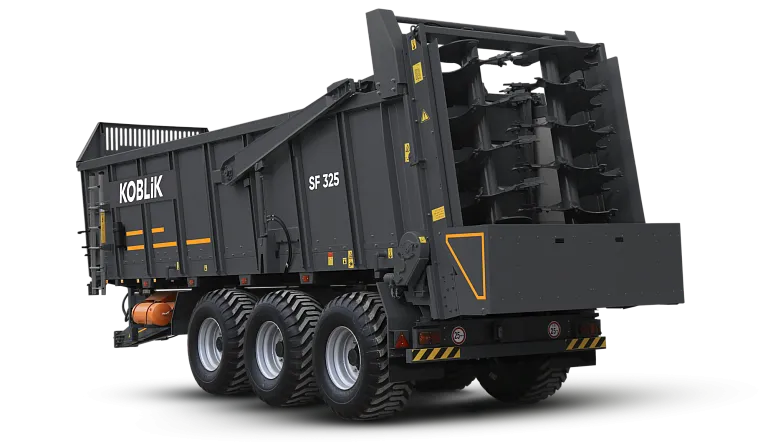

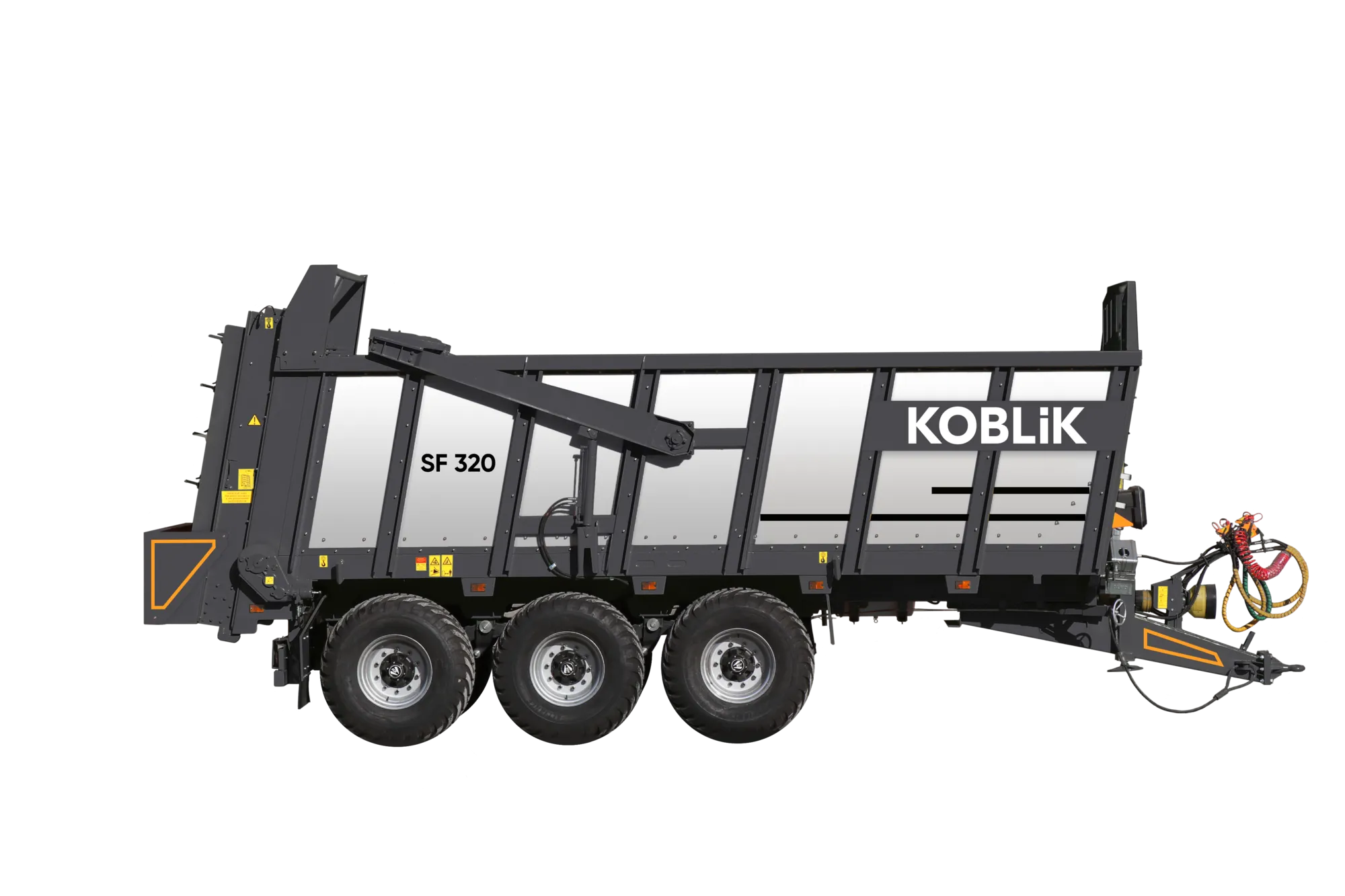

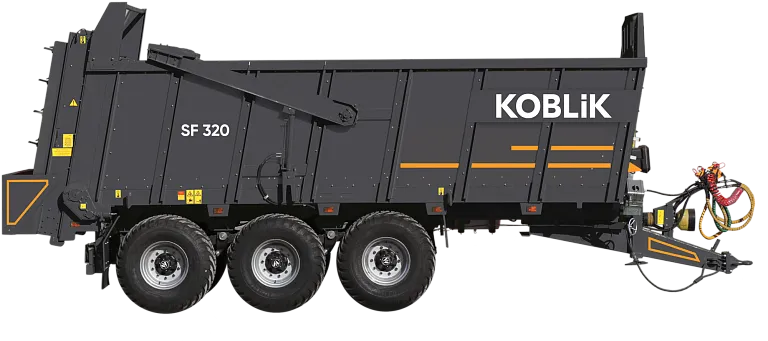

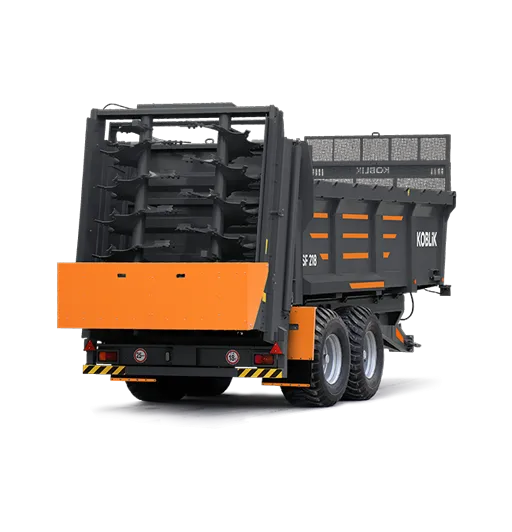

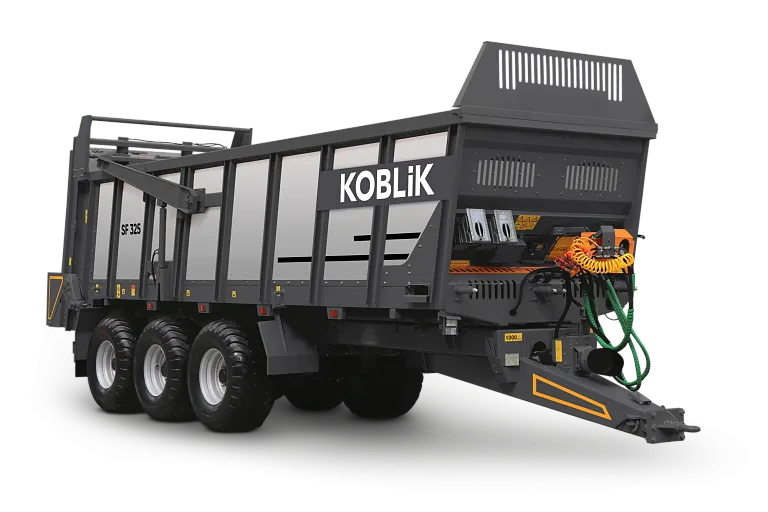

SF multi-axle spreaders

Name: SF multi-axle spreaders
Brand: KOBLiK GROUP
SKU: SF multi-axle spreaders

For applying solid organic fertilisers (peat, manure, compost) and bulk materials (lime, chalk, dolomite flour) to the soil.

Payload from 18 to 25 t

Model

Volume, m³

from 14 to 28

Advantages

The dual-track conveyor is made of high-strength chain
Extended service life

Thanks to the spreader bottom being made of high-quality steel
The ability to remove objects from the bottom side when needed

Ensured by the open design of the lower part of the conveyor
Increased stability in motion

Thanks to reinforced axles with a joint of up to 9°

Request a quote

Description

Description
Technical data
Gallery

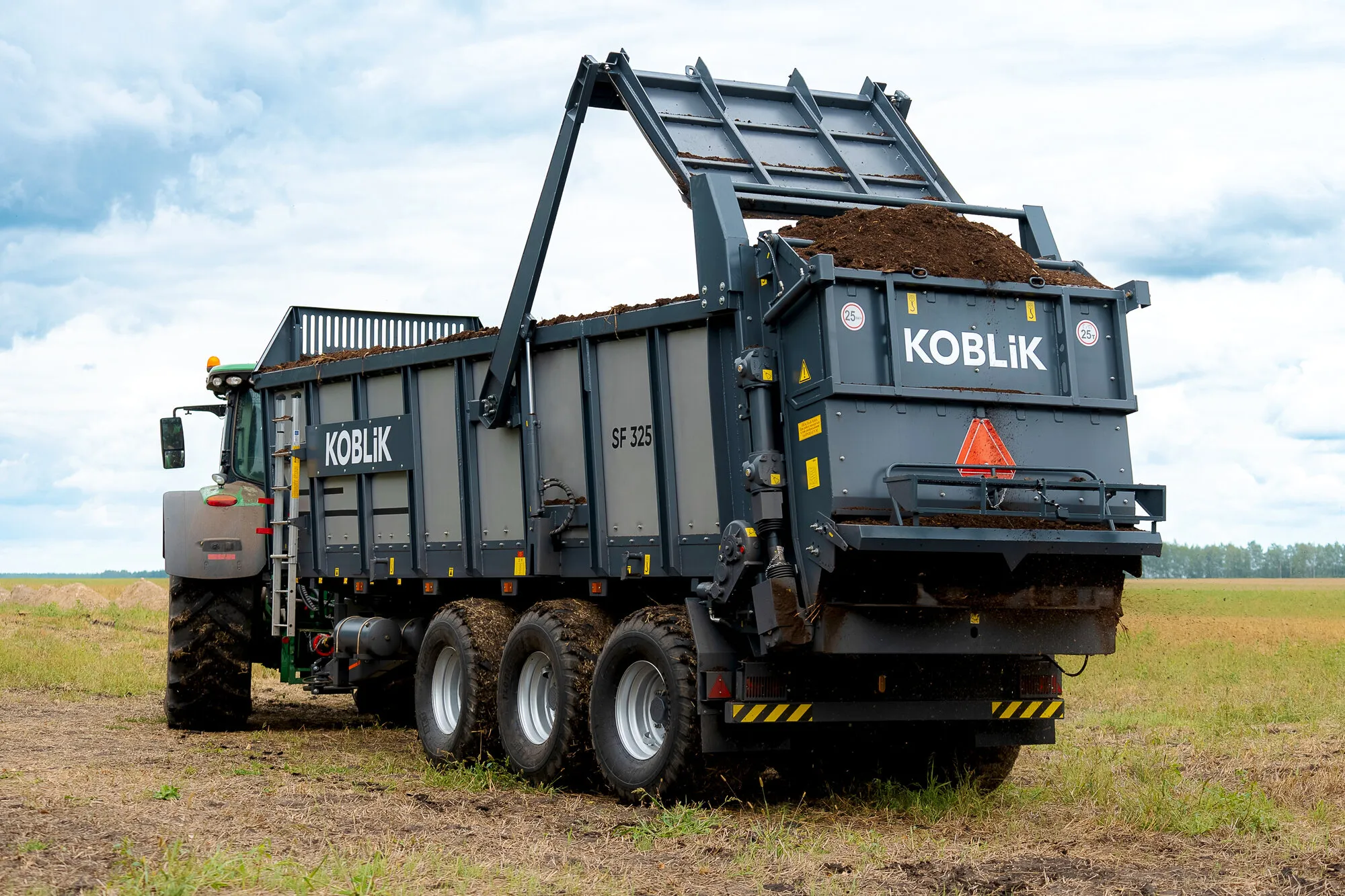

Multi-axle spreaders are designed for the surface application to the soil of solid organic fertilisers (peat, manure, compost), as well as solid bulk materials (lime, chalk, dolomite flour) in large volumes.

Data

Payload, t	from 18 to 25
Volume, m³	from 14 to 28
Weight, t	from 9.3 to 10.6
Overall dimensions (L/W/H), mm	from 9 260 to 10 200
	from 2 550 to 2 600
	from 3 650 to 3 760
Ground clearance, mm	from 350 to 490
Track width, mm	from 1 930±10 to 2010±50
Number of axles, of which self-steering	from 2 / 1 to 3 / 2
Tractor PTO speed during application, rpm	1 000
Tractor traction class / Power, kW, min (hp)	from 4 / 185(250) to 5 / 210 (300)
Tyre size (base version)	550 / 60 R22.5
Technical specifications are not binding and may vary depending on the configuration
