TL 340

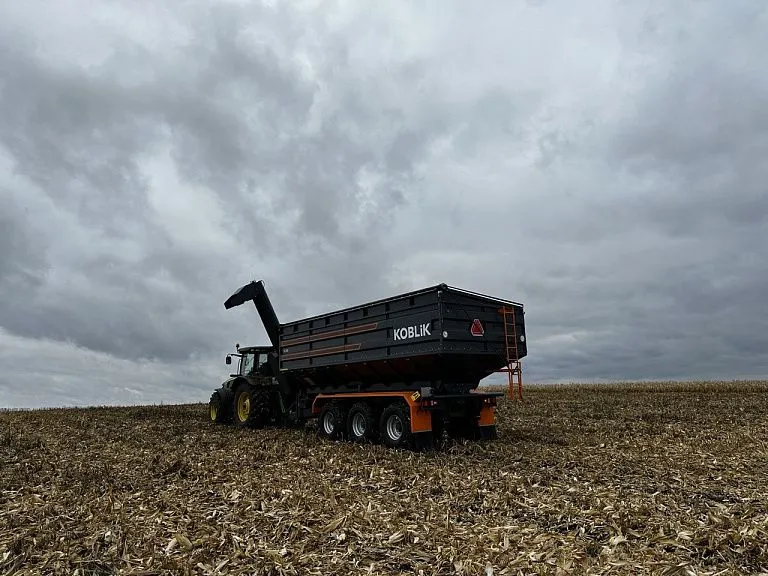

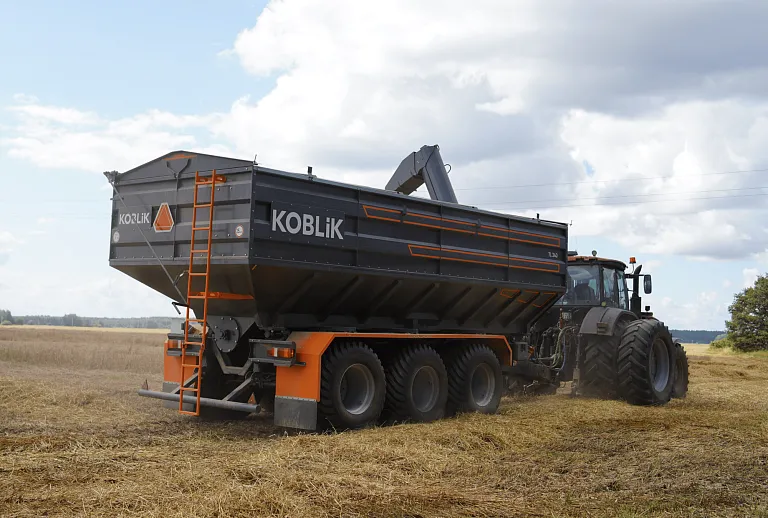

Three-axle TL 340 chaser bin
Payload 31 tModel
Volume, m³
40Advantages
-
Multifunctionality
Can be used in various operations: harvesting, sowing, fertiliser application, grain transfer and dispatch at the threshing floor
-
Less downtime
During logistics delays
-
Minimal soil damage
Specialised wheels are used
-
Monitoring option
Of the field yield using a weighing system
Description
- Description
- Technical data
- Gallery
The TL 340 chaser bin (accumulator hopper, hopper) provides efficient transport and transfer of the harvest (grain) from the combine into vehicles and seeders.
Key advantages
Key advantages
- Sturdy body. Cone shape, high-strength steel (4 mm), sealed welds, two-component primer-enamel coating.
- Ease of maintenance. Hatches in the lower part for easy cleaning; inspection windows on the front and rear walls for loading/unloading control.
- Manoeuvrability. Self-steering front and rear axles ease cornering; hydraulic axle locking for reversing.
- Reliable suspension. A tridem on leaf springs with reaction rods and low-pressure tyres (550/60 R22.5×16) extend tyre life.
- Safety. Single-circuit pneumatic braking system with drum brakes, rear indicator lights.
- Functional electrics. 12 V system, discharge-auger lighting.
- Payload: 31 tonnes.
- Hopper volume: 40 m³.
- Overall dimensions (L × W × H): 10,680 × 3,110 × 3,870 mm (with the auger raised — 5,520 mm).
- Transport speed (loaded/unloaded): up to 15/25 km/h.
- Required tractor power: 220 kW (300 hp).
